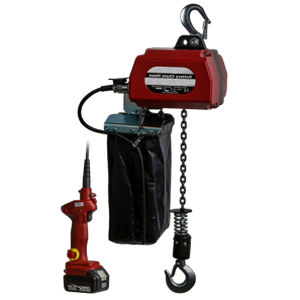

Electric chain hoist FPE250

2

Product overview
This portable battery-powered electric chain hoist FPE250 provides a maximum lifting capacity of 250 kg. It includes a 5 m load chain and is supplied with an ABS carrying case for transport. The kit contains a battery charger and two lithium-ion batteries; each battery provides up to 25 minutes of continuous load operation. The hoist is fitted with a swivel hook with safety latch and a chain catcher attachment. Supplied ready to use, it complies with Machinery Directive 2006/42/EC and is delivered with a certificate of conformity and CE marking. Operating and maintenance instructions are included.

Technical features

• Power supply: 18 V
• Lifting speed: 2.2 m/min
• Chain diameter: 4 mm
• Chain pulls: 2

Technical specifications

• Model: FPE250
• Maximum capacity: 250 kg
• Chain length: 5 metres
• Power supply: 18 V
• Lifting speed: 2.2 m/min
• Chain diameter: 4 mm
• Chain pulls: 2
• Includes: ABS carrying case, battery charger, two lithium‑ion batteries (each up to 25 minutes load time)
• Accessories: swivel hook with safety latch, chain catcher attachment
• Compliance: Machinery Directive 2006/42/EC, certificate of conformity, CE marking
• Documentation: operating and maintenance instructions included
