Manually switched permanent lifting magnet FX-LT4800

for sheet metalfixed beam

Overview
The FX-LT4800 magnetic traverse is a permanent lifting magnet truss designed for rapid and safe handling of ferrous loads in storage, transport and machine loading/unloading operations.

Applications
Suitable for rolling mills, laser, oxyfuel and plasma cutting operations, and any industrial process requiring efficient handling of heavy ferrous plates and blanks.

Design and Operation

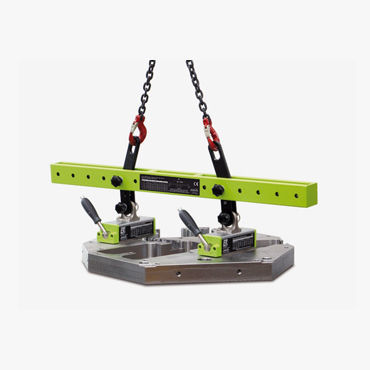

The assembly comprises two FX-V magnetic lifters mounted on a robust beam with chains and adjustable spacing. Adjustable spacing and a strong support beam permit safe handling of parts with off-axis centres of gravity. The magnetic units are removable from the beam in a few simple steps, enabling single-magnet lifting for blanks and small plates when required.

Compliance and Origin
Manufactured in Germany. Complies with CE/EN 13155 and MRL 2006/42 EWG standards, meeting applicable machinery and safety requirements.

Documentation
Product drawing and series documentation are available for this model.

Technical specifications

• Maximum capacity: 4800 kg (with both magnets)
• Product type: Permanent lifting magnet truss (magnetic traverse)
• Lifting elements: Two FX-V magnetic lifters with adjustable spacing
• Support structure: Robust beam with chains
• Removable magnets allow single-magnet use for blanks and small plates
• Suitable industries: Rolling mills, laser/oxyfuel/plasma cutting, general heavy ferrous handling
• Capability: Efficient loading/unloading of items with off-axis centre of gravity
• Standards: CE/EN 13155; MRL 2006/42 EWG
• Country of manufacture: Germany
