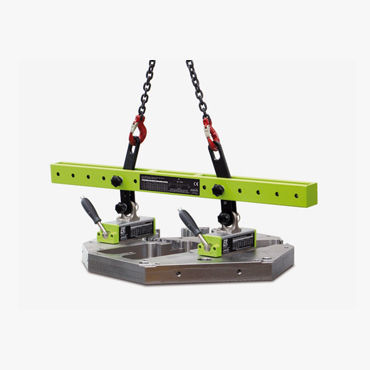

Manually switched permanent lifting magnet FX-LT600

fixed beam

Overview
The FX-LT600 magnetic traverse is an engineered lifting device designed for fast and safe handling of ferrous loads in storage, transport and during loading/unloading operations from machines. The system integrates two FX-V magnetic lifters mounted on a robust beam with chains and allows adjustable spacing between the magnets.

Applications

• Rolling mills
• Laser, oxyfuel and plasma cutting companies
• General lifting, storage and transport of ferrous plates and blanks

Key features

• Maximum capacity: 600 kg (with both magnets)
• Equipped with two FX-V magnetic lifters with adjustable spacing
• Robust support beam with chains for secure handling
• Magnets removable from the beam to allow single-magnet operation for blanks and small plates
• Designed to handle items with off-axis centre of gravity
• Complies with CE / EN 13155 and MRL 2006/42 EWG safety standards
• Made in Germany

Technical specifications

• Model: FX-LT600
• Maximum lifting capacity: 600 kg (with both magnets)
• Magnetic lifters: 2 x FX-V (adjustable spacing)
• Support structure: Beam with chains
• Operation modes: Dual-magnet lifting; magnets removable for single-magnet lifting
• Suitable for loads with off-axis centre of gravity
• Standards: CE / EN 13155; MRL 2006/42 EWG
• Country of origin: Made in Germany
