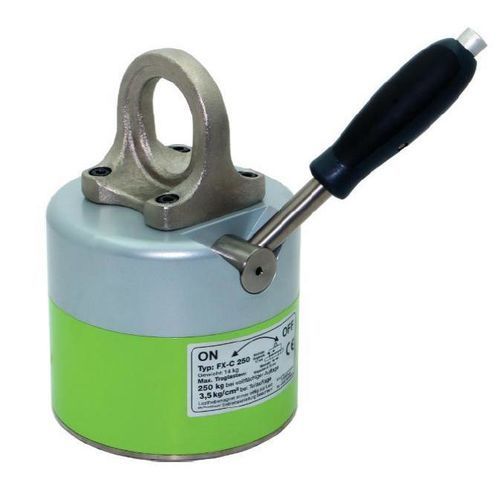

Manually switched magnetic lifter FX-C250

circular

Capacity
Maximum capacity 250 kg

Product overview
The FX-C250 lifting magnet is equipped with a round, multi-pole anchorage surface designed specifically for lifting elements such as rings, bushings, bearing housings, flange plates and other similar parts. This anchorage geometry allows optimum distribution of the lifting force.

Usage and load information
The lifting capacity of the FX-C250 magnet applies only when there is full contact between the magnet anchorage surface and the workpiece. For workpieces with reduced contact area, a maximum load of 3.5 kg per cm² of contact surface should be used for calculation.

Compliance and origin
Manufactured in Germany, these magnets comply with CE/EN 13155 and MRL 2006/42 EWG, ensuring safety and reliability for industrial lifting operations.

Technical characteristics / specifications

• Model: FX-C250
• Maximum lifting capacity: 250 kg (when full contact surface)
• Anchorage surface: round, multi-pole
• Suitable for: rings, bushings, bearing housings, flange plates and similar parts
• Alternative load calculation for reduced contact area: max 3.5 kg per cm²
• Standards: CE/EN 13155; MRL 2006/42 EWG
• Manufacturing origin: Germany
