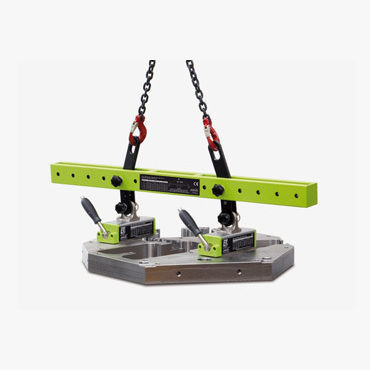

Manually switched permanent lifting magnet FX-LT1000

fixed beam

Product Overview
The FX-LT1000 magnetic traverse is the ideal lifting device for those who want to work quickly and safely. This technology offers numerous advantages in all situations where ferrous loads need to be lifted and handled, both in storage and transport, as well as when loading and unloading parts from machines.

Applications

• Rolling mills
• Laser cutting
• Oxyfuel and plasma cutting
• Storage, transport, loading and unloading of ferrous parts

Design and Features
The FX-LT1000 magnetic traverse is designed around two FX-V magnetic lifters with adjustable spacing, supported by a strong beam with chains. The magnets can be removed from the beam in a few simple steps, allowing blanks and small plates to be lifted with just one magnet. The system permits efficient handling of items with an off-axis centre of gravity and is intended for fast, safe lifting operations. The product complies with CE/EN 13155 and MRL 2006/42 EWG standards and is made in Germany.

Technical specifications

• Model: FX-LT1000
• Maximum lifting capacity: 1000 kg (with both magnets)
• Magnetic lifters: 2 × FX-V with adjustable spacing
• Beam: strong support beam with chains
• Removable magnets: magnets removable for single-magnet lifting of blanks and small plates
• Capable of lifting items with off-axis centre of gravity
• Typical sectors: rolling mills, laser/oxyfuel/plasma cutting, general material handling
• Standards: CE/EN 13155 and MRL 2006/42 EWG
• Origin: Made in Germany
