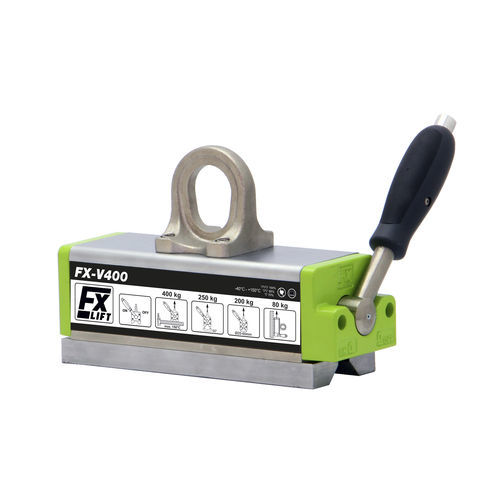

Manually switched permanent lifting magnet FX-V400

for beamsfor profileshigh temperature-resistant

Overview
The FX-V400 is a lever-operated permanent lifting magnet designed for metalworking shops, shipyards and carpentries. The 90° prism enables lifting of angled profiles and the prism depth protects the magnets when handling workpieces after hot cutting. Activation is by a single robust sliding lever. Manufactured in Germany and compliant with CE / EN 13155 / MRL 2006/42 EWG.

Key points

• Permanent lifting magnet with 90° prism for beams and profiles
• Suitable for handling hot parts and workpieces after cutting
• Activation: single robust sliding lever (lever-operated)
• Manufactured in Germany
• Compliant with CE / EN 13155 / MRL 2006/42 EWG

Compliance
CE / EN 13155 / MRL 2006/42 EWG.

Documentation
Technical drawing available in PDF.

Characteristics / technical specifications

• Model: FX-V400
• Series: FX-V
• Maximum capacity: 400 kg
• 90° prism enabling lifting of angled profiles
• Prism depth protects magnets from heat of hot-cut parts
• Activation mechanism: single sliding lever
• Country of manufacture: Germany
• Standards: CE / EN 13155 / MRL 2006/42 EWG
