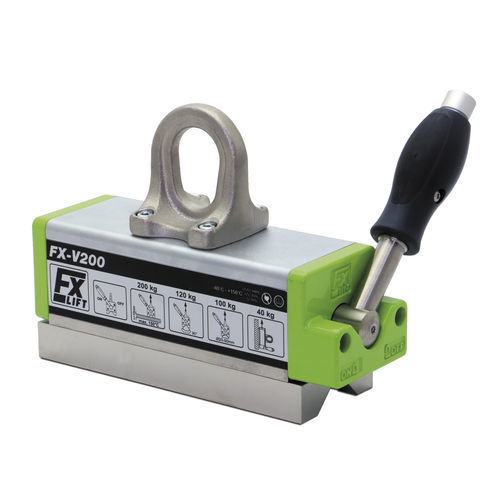

Manually switched magnetic lifter FX-V200handlingrectangular
Add to favorites
Compare this product
Characteristics
- Type of commutation
- manually switched
- Applications
- handling
- Shape
- rectangular
- Lifting force
200 kgf
Description
PRODUCT OVERVIEW
The FX-V200 is a permanent lifting magnet engineered for handling beams, profiles and hot ferrous parts in industrial environments such as carpentry workshops, shipyards and machine shops. A 90° prism geometry enables secure gripping of angled profiles and positions the magnets deeper to reduce exposure to heat when lifting freshly cut hot workpieces. The unit is operated by a single robust sliding lever for straightforward manual control.
MODEL / SYSTEM
FX-HV200 - horizontal/vertical lifting system, manual FX-V200 lifter, capacity 200 kg.
COMPLIANCE AND ORIGIN
Manufactured in Germany. Conforms to CE, EN 13155 and Machinery Directive (MRL) 2006/42/EC.
PRODUCT DETAILS
TECHNICAL SPECIFICATIONS
The FX-V200 is a permanent lifting magnet engineered for handling beams, profiles and hot ferrous parts in industrial environments such as carpentry workshops, shipyards and machine shops. A 90° prism geometry enables secure gripping of angled profiles and positions the magnets deeper to reduce exposure to heat when lifting freshly cut hot workpieces. The unit is operated by a single robust sliding lever for straightforward manual control.
MODEL / SYSTEM
FX-HV200 - horizontal/vertical lifting system, manual FX-V200 lifter, capacity 200 kg.
COMPLIANCE AND ORIGIN
Manufactured in Germany. Conforms to CE, EN 13155 and Machinery Directive (MRL) 2006/42/EC.
PRODUCT DETAILS
- Maximum capacity: 200 kg
- 90° prism for lifting beams, profiles and angled sections
- Prism depth protects magnets from heat when lifting hot parts after cutting
- Manual activation via a single sliding lever
- Suitable for horizontal and vertical handling tasks
- Typical applications: carpentry, shipyards, machine shops
TECHNICAL SPECIFICATIONS
- Model: FX-V200
- System: FX-HV200 horizontal/vertical lifting system
- Prism angle: 90°
- Operation: manual sliding lever
- Material handled: ferrous beams, profiles, hot parts
- Origin: Germany
- Standards: CE / EN 13155 / MRL 2006/42/EC
