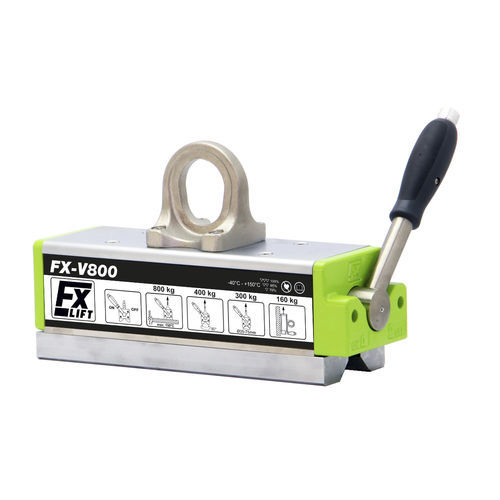

Manually switched magnetic lifter FX-V800
for beamshigh temperature-resistantrectangular

Manually switched magnetic lifter - FX-V800 - Flex Lifting Cranes by AxA Group S.r.l. - for beams / high temperature-resistant / rectangular
Manually switched magnetic lifter - FX-V800 - Flex Lifting Cranes by AxA Group S.r.l. - for beams / high temperature-resistant / rectangular
Add to favorites
Compare this product
Go to the Flex Lifting Cranes by AxA Group S.r.l. website for more information

Characteristics

Type of commutation
manually switched
Applications
for beams
Options
high temperature-resistant
Shape
rectangular
Lifting force

800 kgf

Description

Product overview
The FX-V800 is a permanent lifting magnet designed for beams, profiles and high-temperature loads with a maximum capacity of 800 kg. A 90° prism allows safe lifting of angled profiles and protects the magnets when handling hot-cut workpieces. The lifter is activated by a single robust sliding lever. Manufactured in Germany. Complies with CE / EN 13155 and MRL 2006/42 EWG.

Applications
  • Carpentry and metalwork workshops
  • Shipyards and offshore yards
  • Machine shops and fabrication plants
  • Lifting of angled profiles and hot-cut parts

Documentation
Technical drawings and series documentation are available for the FX-V range (referenced drawing on product page).

Technical specifications
  • Model: FX-V800
  • Maximum capacity: 800 kg
  • Magnet type: Permanent lifting magnet
  • Prism: 90° prism for beams, profiles and angled elements
  • Heat protection: Prism depth protects magnets from heat when lifting hot-cut workpieces
  • Activation: Single sliding lever
  • Typical sectors: carpentry, shipyards, machine shops
  • Country of manufacture: Germany
  • Standards / Compliance: CE / EN 13155 / MRL 2006/42 EWG
