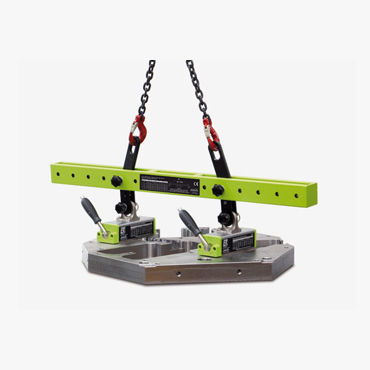

Manually switched permanent lifting magnet FX-LT3200
Add to favorites
Compare this product
Characteristics
- Type of commutation
- manually switched
Description
Overview
The FX-LT3200 magnetic traverse is a permanent lifting magnet truss designed for fast and safe handling of ferrous loads in storage, transport and machine loading/unloading operations. Maximum capacity: 3200 kg.
Applications
Key functional description
The system consists of a beam with chains supporting two FX-V magnetic lifters with adjustable spacing. The magnets are removable from the beam in a few simple steps, allowing single-magnet lifting for smaller blanks and plates. The design enables efficient handling of items with an off-axis centre of gravity.
Compliance and origin
Made in Germany. Complies with CE/EN 13155 and MRL 2006/42 EWG standards.
Technical specifications
The FX-LT3200 magnetic traverse is a permanent lifting magnet truss designed for fast and safe handling of ferrous loads in storage, transport and machine loading/unloading operations. Maximum capacity: 3200 kg.
Applications
- Rolling mills
- Laser, oxyfuel and plasma cutting companies
- Industries handling heavy ferrous plates and blanks, including loads with off-axis centre of gravity
Key functional description
The system consists of a beam with chains supporting two FX-V magnetic lifters with adjustable spacing. The magnets are removable from the beam in a few simple steps, allowing single-magnet lifting for smaller blanks and plates. The design enables efficient handling of items with an off-axis centre of gravity.
Compliance and origin
Made in Germany. Complies with CE/EN 13155 and MRL 2006/42 EWG standards.
Technical specifications
- Model: FX-LT3200
- Maximum capacity (both magnets): 3200 kg
- Configuration: Beam with chains supporting two FX-V magnetic lifters
- Magnet spacing: Adjustable
- Magnet feature: Removable magnets for single-magnet use on smaller blanks and plates
- Designed for: Handling ferrous loads, compensation for off-axis centre of gravity
- Typical industries: Rolling mills, laser/oxyfuel/plasma cutting, heavy load handling sectors
- Standards: CE / EN 13155, MRL 2006/42 EWG
- Origin: Made in Germany
