Electric chain hoist FPE500

2

Overview

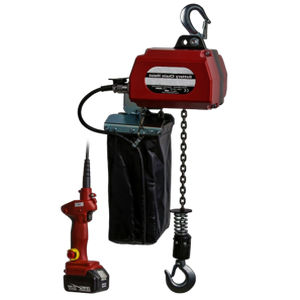

This portable battery-powered chain hoist FPE500 features a 5 m chain and a maximum lifting capacity of 500 kg. Supplied with an ABS transport case, a battery charger and two lithium-ion batteries (each providing up to 25 minutes of load), the unit is ready for rapid deployment. The hoist includes a swivel hook with safety latch and a chain catcher attachment. It conforms to the Machinery Directive 2006/42/EC and is delivered with a certificate of conformity and CE marking. Operating and maintenance instructions are included.

Technical features

• Power supply: 18V
• Lifting speed: 2.2 m/min
• Chain diameter: 4 mm
• Number of chain falls: 2

Specifications / technical data

• Model: FPE500
• Maximum lifting capacity: 500 kg
• Chain length supplied: 5 m
• Power supply: 18V
• Lifting speed: 2.2 m/min
• Chain diameter: 4 mm
• Number of chain falls: 2
• Supplied accessories: ABS transport case, battery charger, two lithium‑ion batteries (each up to 25 minutes under load)
• Hook: swivel hook with safety latch
• Additional: chain catcher attachment included
• Standards: conforms to Machinery Directive 2006/42/EC; supplied with certificate of conformity and CE marking
• Documentation: operating and maintenance instructions included
