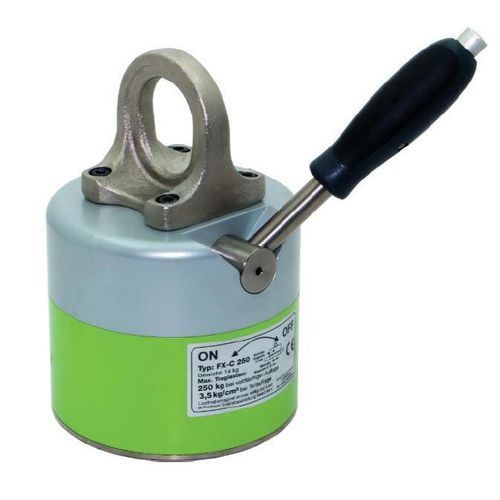

Manually switched magnetic lifter FX-C450circular
Add to favorites
Compare this product
Characteristics
- Type of commutation
- manually switched
- Shape
- circular
- Lifting force
450 kgf
Description
Product overview
FX-C450 magnetic lifter features a round, multi-pole anchorage surface engineered for handling rings, bushings, bearing housings, flange plates and similar circular parts. The multipole design helps distribute magnetic force optimally when full contact is achieved.
Lifting capacity
Maximum rated capacity: 450 kg. The rated capacity applies only when the magnet has full contact across the anchorage surface. For workpieces with reduced contact area, calculate an alternative maximum load of 3.5 kg per cm² of contact area.
Operation
The FX-C450 is operated by a single lever for quick engagement and release. Verify full surface contact and correct part orientation before lifting; follow local safety procedures and applicable standards.
Standards and origin
Manufactured in Germany. Conforms to CE/EN 13155 and MRL 2006/42/EC.
Technical specifications
FX-C450 magnetic lifter features a round, multi-pole anchorage surface engineered for handling rings, bushings, bearing housings, flange plates and similar circular parts. The multipole design helps distribute magnetic force optimally when full contact is achieved.
Lifting capacity
Maximum rated capacity: 450 kg. The rated capacity applies only when the magnet has full contact across the anchorage surface. For workpieces with reduced contact area, calculate an alternative maximum load of 3.5 kg per cm² of contact area.
Operation
The FX-C450 is operated by a single lever for quick engagement and release. Verify full surface contact and correct part orientation before lifting; follow local safety procedures and applicable standards.
Standards and origin
Manufactured in Germany. Conforms to CE/EN 13155 and MRL 2006/42/EC.
Technical specifications
- Model: FX-C450
- Maximum lifting capacity: 450 kg (valid with full contact surface)
- Alternate load calculation for partial contact: up to 3.5 kg per cm²
- Anchorage surface: round, multi-pole
- Intended for: rings, bushings, bearing housings, flange plates and similar circular parts
- Activation: single lever
- Standards: CE/EN 13155; MRL 2006/42/EC
- Manufacturing origin: Germany
