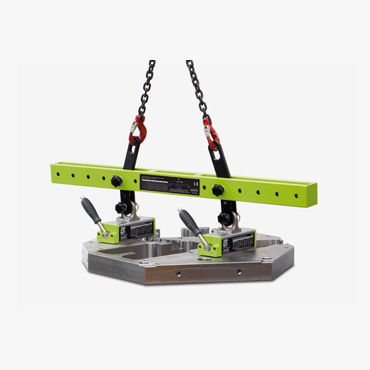

Manually switched permanent lifting magnet FX-LT1400

fixed beam

Capacity
The FX-LT1400 magnetic traverse: maximum lifting capacity 1400 kg (with both magnets). The device is designed for fast and safe handling of ferrous loads in storage, transport and during loading/unloading from machines.

Applications

• Rolling mills
• Laser cutting, oxyfuel and plasma cutting companies
• Any industry requiring lifting of heavy ferrous loads or items with off-axis centre of gravity

Design & Components
The system is composed of a strong beam with chains supporting two FX-V magnetic lifters with adjustable spacing. The magnets can be removed from the beam in a few simple steps, allowing blanks and small plates to be lifted with a single magnet when needed.

Operational advantages

• Enables efficient loading and unloading of items with off-axis centre of gravity
• Quick conversion between two-magnet and single-magnet lifting
• Designed for quick, safe handling of ferrous loads in varied industrial contexts

Compliance & Origin
Product complies with CE/EN 13155 and MRL 2006/42 EWG standards. Made in Germany.

Technical specifications

• Model: FX-LT1400
• Maximum lifting capacity: 1400 kg (with both magnets)
• Lifting elements: two FX-V magnetic lifters with adjustable spacing
• Beam: strong support beam with chains
• Removable magnets: magnets removable from beam for single-magnet lifting of small plates and blanks
• Standards: CE/EN 13155, MRL 2006/42 EWG
• Typical applications: rolling mills; laser, oxyfuel and plasma cutting; general ferrous load handling
