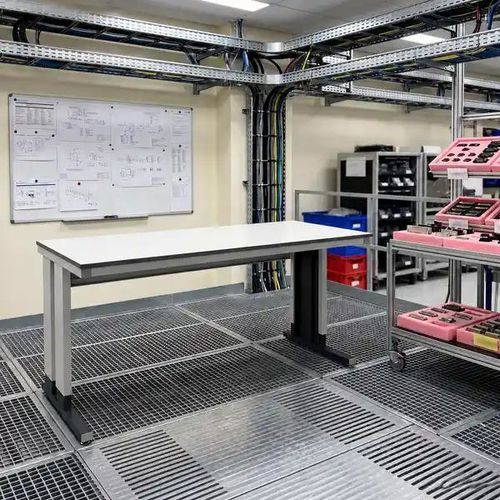

Steel workbench Summit Core

assemblyfor workshopswith drawer

Description
The Summit Core workbench is a sturdy, ergonomic C-frame workstation designed for modern industrial environments — from electronics assembly and laboratories to production lines and logistics. Manual height adjustment 705–1120 mm enables ergonomic working positions seated or standing.

Structure and ergonomics

• C-frame open design for increased legroom, simplified cable routing and easy access to the work surface.
• Powder-coated steel frame providing high stability and a load capacity up to 300 kg (evenly distributed).
• Manual height adjustment 705–1120 mm to adapt the bench to different users and tasks.
• Leveling feet compensate floor unevenness up to 30 mm for maximum stability under load.

Materials and finish

• Worktop: 25 mm laminated particleboard, resistant to scratches, dirt and common chemicals; easy to clean and maintain.
• Steel frame: durable powder-coat finish resistant to corrosion and mechanical damage.

Frame colors

• RAL 7035 — Light grey
• RAL 7016 — Anthracite grey
• MIX 7016/7035 — Two-tone combination

Dimensions and technical data

• Lengths: 1200 / 1500 / 1600 / 1800 / 2000 mm
• Widths: 700 / 800 / 900 mm
• Height adjustment: 705–1120 mm
• Worktop thickness: 25 mm
• Load capacity: 300 kg

Expansion options

• Configurable with shelves, LED lighting, power strips, perforated panels and drawer modules to match specific workstation needs.

Applications

• Recommended for electronics manufacturing, service and repair, research laboratories, assembly workstations and logistics centers.

Warranty & delivery

• Warranty: 5 years for metal components.
• Estimated delivery: 2–3 weeks depending on configuration.

Characteristics / technical specifications

• Model: Summit Core
• Frame type: C-frame
• Frame: steel, powder-coated
• Worktop: 25 mm laminated particleboard
• Height adjustment: 705–1120 mm (manual)
• Load capacity: 300 kg
• Leveling feet: compensation up to 30 mm
• Colors: RAL 7035, RAL 7016, MIX 7016/7035
• Available sizes: Lengths 1200–2000 mm, widths 700/800/900 mm
• Optional accessories: shelves, LED lighting, power strips, perforated panels, drawer modules
