Steel workbench Summit Core

assemblymodularwith shelves

Overview

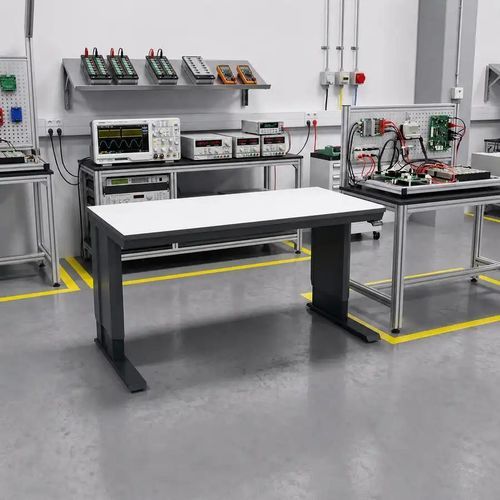

The Summit Core Electric is an electric height-adjustable workbench designed for industrial workstations, assembly lines, laboratories and logistics. It supports seated and standing positions with an electric adjustment range of 715–1215 mm and a load capacity of 320 kg. The modular design enables configuration with a range of accessories to meet specific tasks.

Key features

• Electric height adjustment: motorized, precise 715–1215 mm range with memory presets.
• Sturdy C-leg steel frame: powder-coated finish for durability and low maintenance.
• Intuitive control panel: memory settings for preferred heights.
• Collision sensor: automatic stop on obstruction for operator safety.
• Conductive leveling feet and perforated under-panel for cable routing.

Ergonomics and comfort

• C-leg design providing stability and generous legroom for the operator.
• Integrated rear cable management channel to keep cables organized and strengthen the frame.

Expandability
The workbench is modular and configurable with accessories to adapt to different workflows:

• Shelves, rear panels and power modules
• LED task lighting
• Monitor arms, keyboard trays and scanner mounts

Sustainability & warranty

• Eco-friendly packaging with minimized plastic components.
• 5-year warranty covering metal frame components.
• Typical lead time: 2–3 weeks depending on configuration.

Technical specifications

• Worktop dimensions (example): 1190 x 690 mm
• Worktop thickness: 25 mm (melamine-coated laminated particleboard)
• Height adjustment: Electric, 715–1215 mm
• Load capacity: 320 kg
• Frame material: Powder-coated steel, C-leg design
• Available frame colors: Light Grey (RAL 7035), Anthracite Grey (RAL 7016), Mix RAL7035/7016
• Available sizes (L x W): Lengths 1200 / 1500 / 1600 / 1800 / 2000 mm; Widths 700 / 800 / 900 mm
