Industrial workstation Summit Ultra

for laboratorymodularergonomic

Overview

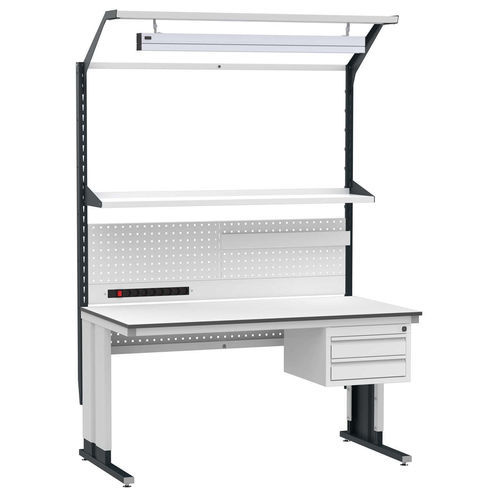

The Summit Ultra Workstation is an ergonomically designed modular workstation with a C-foot frame and manual height adjustment. It integrates storage, lighting and power options for professional industrial and laboratory workspaces.

Build quality and load capacity

• Steel C-foot frame with reinforced rear panel for stability and cable management.
• Evenly distributed load capacity: 300 kg.

Ergonomic height adjustability

• Manual height adjustment range: 705–1120 mm, operated with an Allen key.
• 30 mm leveling feet for stability on uneven floors.

Materials and finish

• Frame: eco-friendly powder-coated steel (RAL 7035 / RAL 7016 options).
• Worktop: FSC-certified melamine-coated particleboard, 25 mm thickness; example dimensions 1190×690 mm.

Features

• Adjustable shelves: depth 300 mm or 400 mm; tilt 0°, 10°, 15°; each shelf up to 15 kg.
• Drawer module options: 1, 2 or 3 drawers; each drawer up to 40 kg.
• Perforated back panel for tools and accessories.
• Power strip: 7 Type E sockets, surge protection and main switch.
• LED lighting: microprismatic diffuser, adjustable angles, rated life ~50,000 h; 3822 lm (≤1600 mm) / 4778 lm (larger).

Modularity and customization

• Extra shelves, panels and container rail for storage extension.
• IT accessories available: monitor and keyboard mounts.
• Additional lighting and power options.

Packaging and warranty

• Packaged in eco-friendly materials.
• 5-year warranty on metal components.

Available sizes & colors

• Example sizes: 1200×700, 1500×700, 1600×700, 1800×700, 2000×700, 1200×800, 1500×800, 1600×800, 1800×800, 2000×800, 1200×900, 1500×900, 1600×900, 1800×900, 2000×900.
• Frame colors (RAL): 7035 / 7016; MIX option available.

Technical specifications

• Model: Summit Ultra Workstation.
• Length (example): 1190 mm.
• Worktop dimensions (example): 1190×690 mm.
• Worktop thickness: 25 mm.
• Height adjustment: 705–1120 mm (manual, Allen key).
• Load capacity: 300 kg (evenly distributed).
• Leveling feet: 30 mm.
• LED lighting: microprismatic diffuser, life ~50,000 h; 3822 lm (≤1600 mm) / 4778 lm (larger).
• Shelf depths: 300 mm or 400 mm; tilt: 0°, 10°, 15°; shelf capacity 15 kg.
• Drawer options: 1/2/3 drawers; 40 kg per drawer.
• Power strip: 7 Type E sockets, surge protection, main switch.
