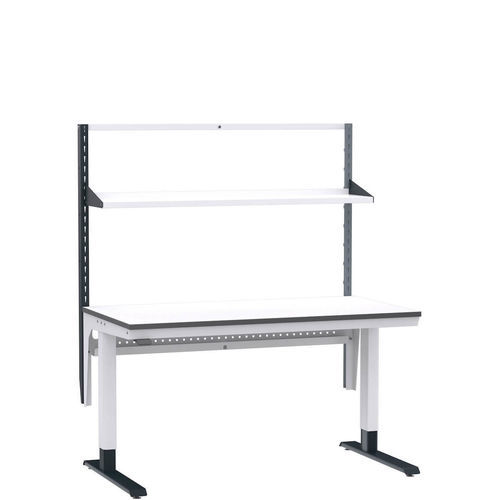

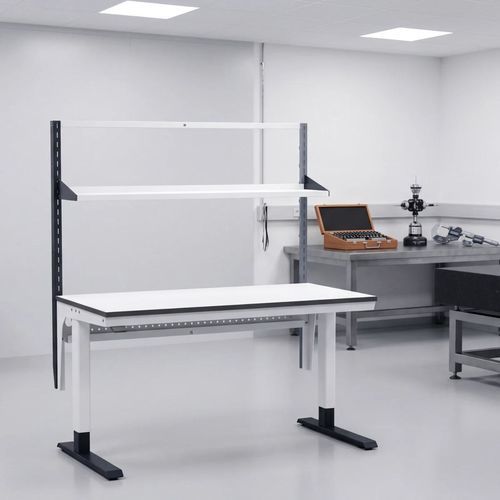

Laboratory workstation Velar Standard

assemblyindustrialelectronic

Overview
Velar Standard is an electrically adjustable C-frame workbench with a full-length shelf, designed for industrial and laboratory production environments. It combines electric height adjustment with an integrated shelf for organized workflow.

Structure and ergonomics

• Electric height adjustment: 715–1215 mm — suitable for seated or standing work.
• C-frame construction: powder-coated steel for stability and long service life.
• Load capacity: 160 kg on the worktop.

Worktop and materials

• Worktop: laminated particleboard with melamine finish, 25 mm thickness — wear-resistant and easy to clean.
• Shelf: full-length shelf, standard depth 300 mm (optional 400 mm); tilt 0°/10°/15°; max shelf load 15 kg.

Dimensions and variants

• Lengths: 1200 / 1500 / 1600 / 1800 / 2000 mm.
• Widths: 700 / 800 mm.
• Height range: 715–1215 mm.
• Colors: RAL 7035, RAL 7016 or MIX 7016/7035.

Applications
Suitable for laboratories, electronic assembly, quality control and packaging operations. The integrated shelf improves organization and workstation efficiency.

Optional accessories

• LED lighting.
• Power strips and cable management solutions.
• Drawer modules and storage accessories.

Warranty and delivery

• Warranty: 5 years on metal components.
• Lead time: approximately 2–3 weeks.

Technical specifications

• Model: Velar Standard
• Frame type: C-frame (steel, powder-coated)
• Height adjustment: electric, 715–1215 mm
• Load capacity (worktop): 160 kg
• Adjustment speed: 38 mm/s
• Memory positions: up to 4 presets
• Collision detection: compliant with DIN EN 14738
• Worktop material: laminated particleboard with melamine finish; thickness 25 mm
• Shelf: full-length; depth 300 mm (option 400 mm); tilt 0°/10°/15°; max load 15 kg
• Available sizes: lengths 1200/1500/1600/1800/2000 mm; widths 700/800 mm
• Colors: RAL 7035 / RAL 7016 / MIX 7016/7035
• Packaging: plastic-free, FSC & PEFC certified components
• Brand: FORISON
