Assembly workstation Velar Flex Electric

for laboratoryindustrialfor control rooms

Velar Flex Electric is a non-ESD, electrically height-adjustable workstation designed for shared benches or multi-process workstations with two independent upper zones. It uses a premium C-leg column frame with integrated rear cable management, supports 160 kg and adjusts across 715-1215 mm with 38 mm/s movement, four memory presets and collision protection.

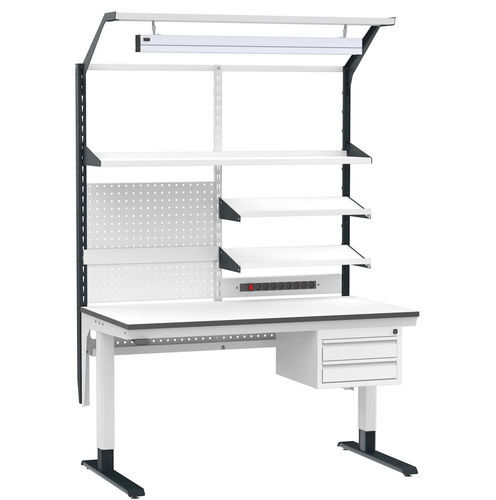

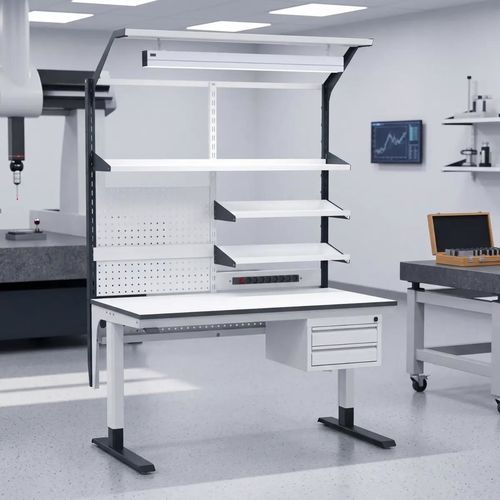

This configuration includes a middle upright, lighting, shelf levels, half-width H600 panel, power strip, bin rail and drawer unit for two working zones.

Typical applications include assembly, inspection, measuring, cable assembly, electrical cabinet work, laboratory and workshop use.

Technical details: 25 mm melamine-faced laminated worktop; available sizes 1190 / 1490 / 1590 / 1790 / 1990 mm wide x 690 / 790 mm deep; frame colours RAL 7035 light grey, RAL 7016 anthracite or MIX.

For electrostatic-sensitive parts, select the corresponding ESD version.

•
