Wooden workbench Nova Flexassemblyfor workshopsindustrial
Add to favorites
Compare this product
Characteristics
- Worktop material
- wooden
- Applications
- for workshops, assembly, industrial, inspection, for disassembly, order picking
- Other characteristics
- 2-drawer, with shelves, modular, height-adjustable, customizable, ergonomic, manual
- Length
Min.: 1,190 mm
(47 in)Max.: 1,990 mm
(78 in)- Width
Min.: 690 mm
(27 in)Max.: 990 mm
(39 in)- Height
Min.: 680 mm
(27 in)Max.: 1,130 mm
(44 in)- Load
300 kg
(661.4 lb)
Description

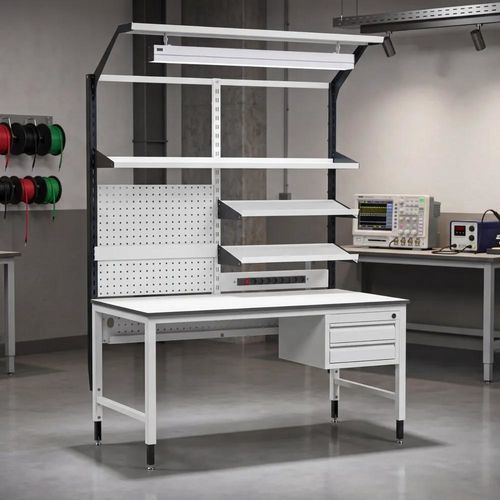

Nova Flex is a non-ESD, manually height-adjustable industrial workstation designed for shared benches or multi-process workstations with two independent upper zones. It is built on a four-leg H-frame made from 40 x 40 mm steel profiles and supports 300 kg, with a height range of 680-1130 mm.
This configuration includes a middle upright, lighting, shelf levels, half-width H600 panel, power strip, bin rail and drawer unit for two working zones.
Typical applications include assembly, inspection, measuring, cable assembly, electrical cabinet work and workshop use.
Technical details: 25 mm melamine-faced laminated worktop; available sizes 1190 / 1490 / 1590 / 1790 / 1990 mm wide x 690 / 790 / 890 / 990 mm deep; frame colours RAL 7035 light grey, RAL 7016 anthracite or MIX.
For electrostatic-sensitive parts, select the corresponding ESD version.
This configuration includes a middle upright, lighting, shelf levels, half-width H600 panel, power strip, bin rail and drawer unit for two working zones.
Typical applications include assembly, inspection, measuring, cable assembly, electrical cabinet work and workshop use.
Technical details: 25 mm melamine-faced laminated worktop; available sizes 1190 / 1490 / 1590 / 1790 / 1990 mm wide x 690 / 790 / 890 / 990 mm deep; frame colours RAL 7035 light grey, RAL 7016 anthracite or MIX.
For electrostatic-sensitive parts, select the corresponding ESD version.
