Steel workbench Nova Edgeassemblyfor workshopsindustrial
Add to favorites
Compare this product
Characteristics
- Worktop material
- steel
- Applications
- for workshops, assembly, industrial, inspection, for disassembly, order picking
- Other characteristics
- 2-drawer, with shelves, modular, for heavy loads, height-adjustable, customizable, manual
- Length
Max.: 1,990 mm
(78 in)Min.: 1,190 mm
(47 in)- Width
Max.: 990 mm
(39 in)Min.: 690 mm
(27 in)- Height
Max.: 1,130 mm
(44 in)Min.: 680 mm
(27 in)- Load
300 kg
(661.4 lb)
Description

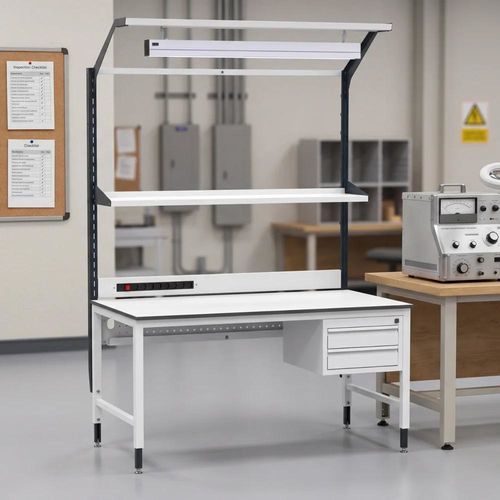

Nova Edge is a non-ESD, manually height-adjustable industrial workstation designed for technical stations where lighting, power and locked storage must be available at one position. It is built on a four-leg H-frame made from 40 x 40 mm steel profiles and supports 300 kg, with a height range of 680-1130 mm.
This configuration includes LED lighting, a full shelf, 7-socket power strip and lockable 2-drawer unit.
Typical applications include assembly, inspection, measuring, cable assembly, electrical cabinet work and workshop use.
Technical details: 25 mm melamine-faced laminated worktop; available sizes 1190 / 1490 / 1590 / 1790 / 1990 mm wide x 690 / 790 / 890 / 990 mm deep; frame colours RAL 7035 light grey, RAL 7016 anthracite or MIX.
For electrostatic-sensitive parts, select the corresponding ESD version.
This configuration includes LED lighting, a full shelf, 7-socket power strip and lockable 2-drawer unit.
Typical applications include assembly, inspection, measuring, cable assembly, electrical cabinet work and workshop use.
Technical details: 25 mm melamine-faced laminated worktop; available sizes 1190 / 1490 / 1590 / 1790 / 1990 mm wide x 690 / 790 / 890 / 990 mm deep; frame colours RAL 7035 light grey, RAL 7016 anthracite or MIX.
For electrostatic-sensitive parts, select the corresponding ESD version.
