Assembly workstation Velar Infinite

for laboratoryindustrialheight-adjustable

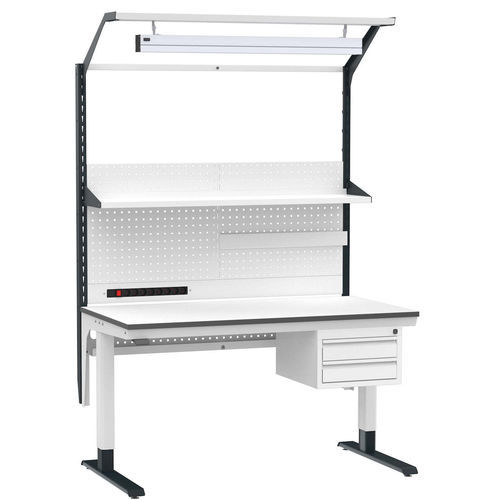

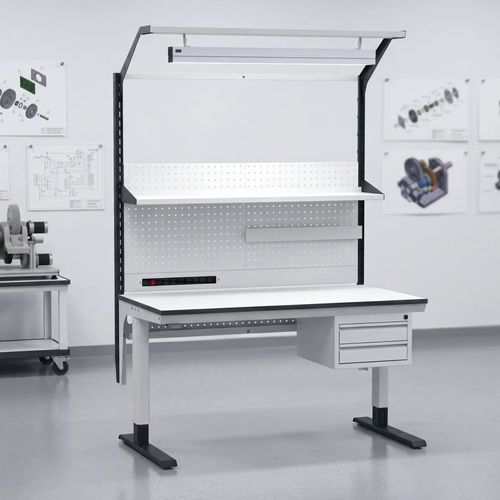

Velar Infinite electric workbench — fully equipped professional workstation
Velar Infinite is an industrial-grade electric workbench combining ergonomic electric height adjustment, a C‑foot steel frame and a comprehensive accessory package for electronics, assembly and laboratory environments.

Core features

• Electric height adjustment: 715–1215 mm, load capacity 160 kg (evenly distributed).
• C‑foot frame: powder-coated steel for stability and long service life.
• Memory function: up to 4 programmable height presets.
• Collision protection: automatic stop on obstacle contact, compliant with DIN EN 14738.
• Floor leveling: adjustable feet compensate up to 30 mm; motor speed approx. 38 mm/s.

Included equipment

• Shelves: depth 300 mm (option 400 mm), tilt 0°/10°/15°, shelf load ~15 kg each.
• Perforated back panel: 600 mm high for hooks and holders.
• Power strip: 7 × Type F outlets with master switch and surge protection.
• LED lighting: microprismatic, 5000 K, up to 4778 lm, angle adjustment ±60°.
• Container rail: half‑length rail supporting up to 10 kg.
• Drawer module: lockable, configurable 1/2/3 drawers, total capacity 40 kg.
• Worktop: melamine‑coated particleboard, 25 mm thickness, ABS edges; example nominal size 1190 × 690 mm.

Sustainability & quality

• Materials: powder‑coated steel frame, FSC/PEFC certified wood-based top.
• Packaging: plastic‑free packaging; FSC and PEFC certified.
• Warranty: 5 years on metal components (manufacturer information).

Technical data

• Height range: 715–1215 mm.
• Load capacity: 160 kg (evenly distributed).
• Worktop dimensions (example): 1190 × 690 mm; thickness 25 mm.
• Total height with back structure: approx. 2168–2668 mm.
• Motor speed: ~38 mm/s; floor leveling: up to 30 mm.
• Standards: collision protection compliant with DIN EN 14738.
