Laboratory workstation Summit Edge

for workshopsassemblyindustrial

Product overview

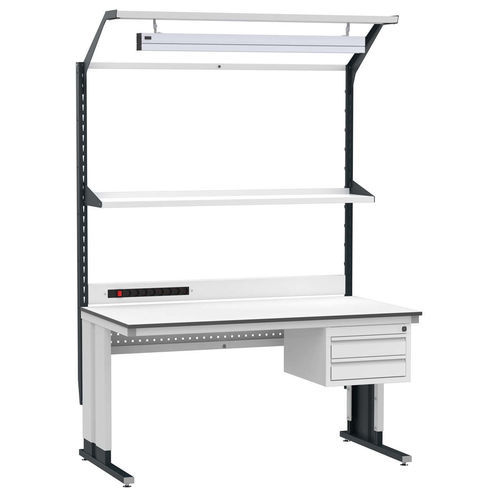

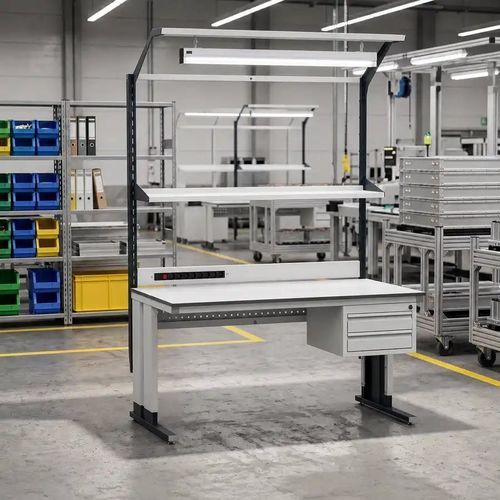

The Summit Edge is an industrial workstation with a C-frame steel structure and manual height adjustment. Designed for production lines, labs and assembly, it combines ergonomics, modularity and a high load capacity for demanding applications.

Key features

• High load capacity: up to 300 kg (evenly distributed) thanks to a reinforced steel frame.
• Manual height adjustment: 705–1120 mm by hex key; leveling feet provide +30 mm compensation for uneven floors.
• Ergonomic C-frame: open design for leg clearance and comfortable seated or standing work.
• Durable worktop: 25 mm laminated particleboard with ABS edge for scratch resistance and easy cleaning.
• Powder-coated steel frame: corrosion and wear-resistant finish; available in RAL7035, RAL7016 or mixed.

Included equipment

• Adjustable full-width shelf: depths 300 or 400 mm, tilt 0°/10°/15°, max load 15 kg.
• Power strip: 7x Type E sockets with surge protection and main switch.
• LED lighting: 5000 K with microprismatic diffuser for even, glare-free illumination.
• Locking drawer cabinet: available in 1/2/3-drawer configurations, each drawer rated 40 kg.

Sustainability & warranty

• Delivered in eco-friendly, plastic-free packaging.
• 5-year warranty on all metal components.

Technical specifications

• Length: 1190 mm (other lengths available).
• Width: 690 mm (other widths available).
• Height (adjustable): 705–1120 mm.
• Worktop thickness: 25 mm laminated particleboard with ABS edge.
• Load capacity: 300 kg (evenly distributed).
• Frame: steel, powder-coated (RAL7035 / RAL7016 / MIX).
• Height adjustment: manual via hex key; leveling feet +30 mm.
• Accessories: adjustable shelf, 7x Type E power strip (surge protection, main switch), LED 5000 K, locking drawer cabinet.
• Typical lead time: 2–3 weeks (subject to configuration).
