Industrial workstation Velar Edge

for workshopselectricmodular

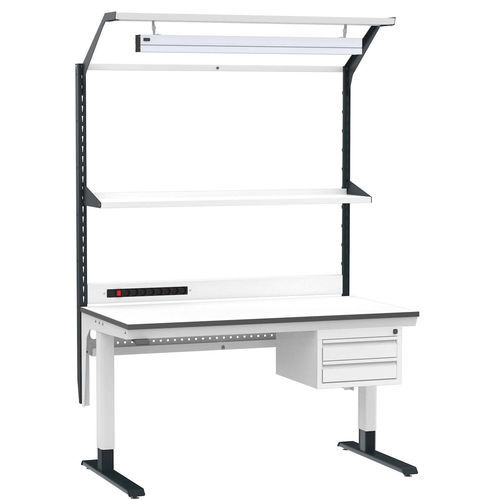

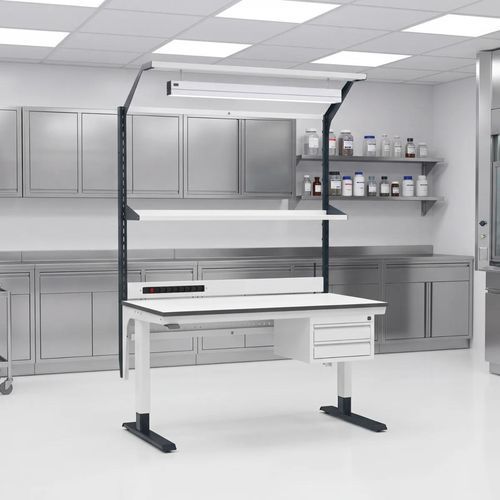

Overview The Velar Edge Electric Workstation combines electric height adjustment with a stable C-foot frame design to provide ergonomic adaptability for industrial and technical work environments. The Smart configuration includes shelving, an integrated power strip, a drawer module and LED lighting to form a configurable, ready-to-use workstation.

Key Features

• Load Capacity: Supports up to 160 kg (evenly distributed).
• Height Adjustment Range: 715 - 1215 mm (electric adjustment for sitting and standing use).
• Control Panel with Memory Function: Stores up to four preset height positions.
• Collision Protection: Built-in sensors compliant with DIN EN 14738.
• Finish: Frame and metal components coated with an eco-friendly powder finish.

Specifications and Dimensions

• Worktop Dimensions: 1190 x 690 mm (example worktop).
• Worktop Thickness: 25 mm, melamine resin coated for durability and easy cleaning.
• Total Height: 2168 - 2668 mm (system height range).
• Frame Color Options: Light gray (RAL 7035) or anthracite gray (RAL 7016).
• Frame Material: Steel, C-foot construction for stability and clear legroom.

Included Equipment

• Shelf: Depth 300 mm (optional 400 mm); adjustable tilt 0°, 10°, 15°; shelf load 15 kg.
• Power Strip: Seven type-F sockets, main switch and surge protection.
• LED Lighting: Adjustable angle ±60°; up to 3822 lumens for stations ≤1600 mm and up to 4778 lumens for wider setups.
• Drawer Module: Two lockable drawers standard; options for 1 or 3 drawers; total drawer load 40 kg.

Additional Information

• Assembly: Delivered disassembled for easier transport.
• Modular Expansion: Compatible with accessories including:
  • Additional shelves
  • Perforated back panels
  • Extra LED lighting
  • Additional power sockets
  • IT accessories such as monitor and keyboard mounts
• Delivery Time (indicative): 2–3 weeks depending on configuration.

Sustainability Commitment The system uses FSC and PEFC-certified materials where applicable and eco-friendly, plastic-free packaging.

Warranty 5-year warranty on all metal components.

Technical Specifications

• Model: Velar Edge
• Load capacity: 160 kg (evenly distributed)
• Height adjustment (worktop): 715 - 1215 mm
• Control panel: Memory for 4 presets
• Safety: Collision protection compliant with DIN EN 14738
• Worktop dimensions (example): 1190 x 690 mm
• Worktop thickness: 25 mm (melamine resin)
• Total system height: 2168 - 2668 mm
• Frame: Steel, C-foot construction
• Frame colors: RAL 7035 / RAL 7016
• Shelf: Depth 300 mm (optional 400 mm), tilt 0°/10°/15°, load 15 kg
• Power strip: 7 × type-F sockets, main switch, surge protection
• LED: Adjustable ±60°; up to 3822 lm (≤1600 mm) / 4778 lm (wider)
• Drawer module: 1, 2 (standard lockable) or 3 drawers; total drawer load 40 kg
• Warranty: 5 years on metal components
• Packaging: Eco-friendly, plastic-free where specified
