Assembly workstation Velar Ultra

for laboratoryindustrialelectric

Overview

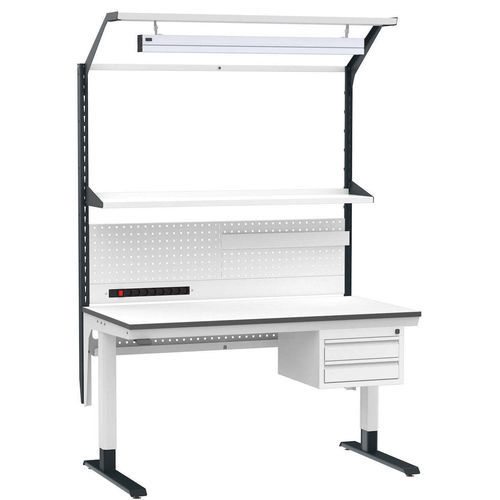

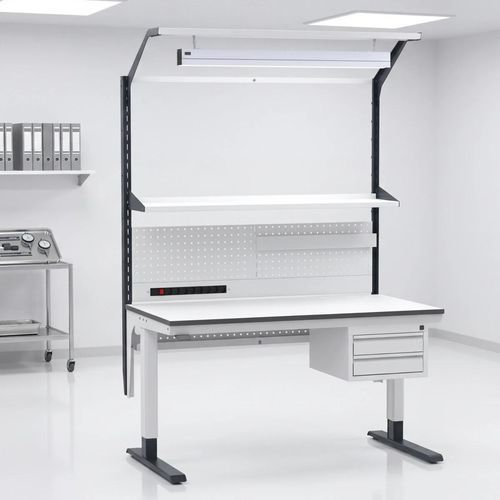

The Velar Ultra is an electrically height-adjustable workstation engineered for professional industrial, laboratory and assembly environments. Featuring a C-foot frame, the Ultra integrates an adjustable shelf, perforated back panel, power strip, container rail, lockable drawer module and microprismatic LED lighting on a melamine worktop with steel frame.

Core Features

• Electric height adjustment: Smooth adjustment range 715–1215 mm for seated-to-standing use; load capacity up to 160 kg.
• C-foot frame: Stable steel construction with rear panel enhancing rigidity and providing cable management.
• User-friendly controls: Intuitive control panel with memory function for up to four height presets.
• Collision protection: Sensor-equipped system compliant with DIN EN 14738.

Durability and Sustainability

• Eco-friendly finishes: Steel components with environmentally friendly powder coating.
• Durable worktop: 25 mm melamine-coated particleboard, resistant and easy to clean.
• Sustainable packaging & warranty: Plastic-free FSC/PEFC certified packaging; 5-year warranty on metal components.

Modular and Expandable Design

• Shelves: Depth options 300 mm or 400 mm, tilt 0°/10°/15°, each shelf up to 15 kg.
• Power strip: Option with 7 Type F outlets, master switch and surge protection.
• LED lighting: Microprismatic LED, adjustable angle ±60°, 5000K, up to 4778 lm.
• Perforated back panel: Tool and accessory organization.
• Container rail: Supports up to 10 kg for bins.
• Lockable drawer module: Standard 2-drawer (optional 1 or 3), total capacity up to 40 kg.

Available Sizes & Colors

• Worktop sizes: 1200x700, 1500x700, 1600x700, 1800x700, 2000x700, 1200x800, 1500x800, 1600x800, 1800x800, 2000x800.
• Color options: Light Grey (RAL 7035), Anthracite Grey (RAL 7016), Mix RAL7035/7016.

Technical Specifications

• Height adjustment: Electric, 715–1215 mm.
• Load capacity: 160 kg.
• Worktop: Example 1190 x 690 mm (varies by selected size); thickness 25 mm; melamine-coated particleboard.
• Frame: Steel C-foot, powder-coated (RAL 7035 / RAL 7016 / MIX).
• Total height: 2168–2668 mm (including rear panel/accessories).
• Accessories summary: Adjustable shelves (300/400 mm), power strip (7x Type F), microprismatic LED (5000K, up to 4778 lm), perforated back panel, container rail (10 kg), lockable drawer module (up to 40 kg).
