Steel workbench Nova Ultraassemblyfor workshopsindustrial
Add to favorites
Compare this product
Characteristics
- Worktop material
- steel
- Applications
- for workshops, assembly, industrial, inspection, for disassembly, order picking
- Other characteristics
- with drawer, with shelves, modular, with tool board, height-adjustable, customizable, ergonomic, manual
- Length
Min.: 1,190 mm
(47 in)Max.: 1,990 mm
(78 in)- Width
Min.: 690 mm
(27 in)Max.: 990 mm
(39 in)- Height
Min.: 680 mm
(27 in)Max.: 1,130 mm
(44 in)- Load
300 kg
(661.4 lb)
Description

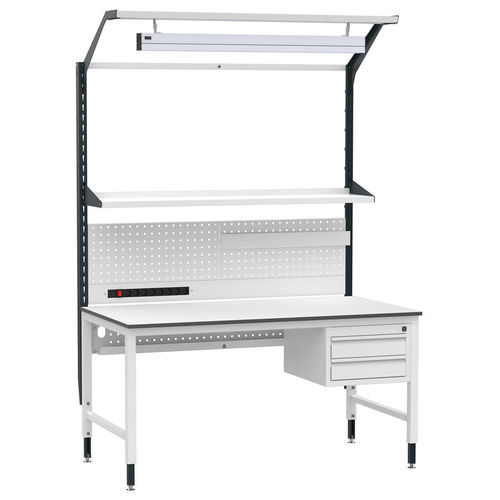

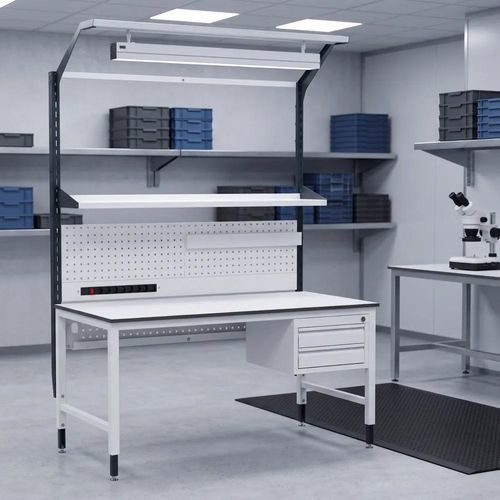

Nova Ultra is a non-ESD, manually height-adjustable industrial workstation designed for complete assembly and quality-control stations requiring lighting, power, tool access and secure storage. It is built on a four-leg H-frame made from 40 x 40 mm steel profiles and supports 300 kg, with a height range of 680-1130 mm.
This configuration includes LED lighting, shelf, H300 perforated panel, power strip, bin rail and lockable drawer storage.
Typical applications include assembly, inspection, measuring, cable assembly, electrical cabinet work and workshop use.
Technical details: 25 mm melamine-faced laminated worktop; available sizes 1190 / 1490 / 1590 / 1790 / 1990 mm wide x 690 / 790 / 890 / 990 mm deep; frame colours RAL 7035 light grey, RAL 7016 anthracite or MIX.
For electrostatic-sensitive parts, select the corresponding ESD version.
This configuration includes LED lighting, shelf, H300 perforated panel, power strip, bin rail and lockable drawer storage.
Typical applications include assembly, inspection, measuring, cable assembly, electrical cabinet work and workshop use.
Technical details: 25 mm melamine-faced laminated worktop; available sizes 1190 / 1490 / 1590 / 1790 / 1990 mm wide x 690 / 790 / 890 / 990 mm deep; frame colours RAL 7035 light grey, RAL 7016 anthracite or MIX.
For electrostatic-sensitive parts, select the corresponding ESD version.
