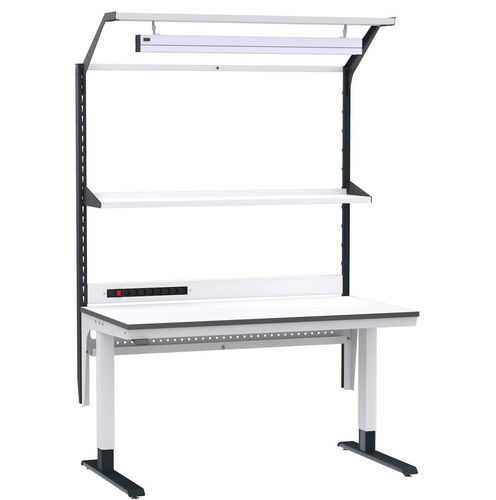

Assembly workstation Velar Max

ergonomicmodularelectric

Overview
The Velar Max electric workstation combines electrically adjustable height with a robust C‑foot frame to provide a functional, ergonomic workspace for professional environments. Integrated options include shelving, an inline power strip and LED task lighting to support organized workstations.

Key Features

• Electric height adjustment: 715–1215 mm to enable smooth transitions between seated and standing work.
• Load capacity: 160 kg suitable for equipment and assembly tasks.
• Sturdy C‑foot construction: powder‑coated steel frame with rear panel that improves stability and serves as a cable management channel.
• Memory control panel: stores up to 4 height presets; motors operate quietly with a lift speed of 38 mm/s.

Safety and Efficiency

• Collision protection: integrated sensors prevent impacts during adjustment; compliant with DIN EN 14738.
• Ergonomic support: reduces operator strain and improves posture to enhance productivity.

Eco‑Friendly and Durable Design

• Worktop: laminated particleboard with melamine finish for scratch resistance and easy cleaning (25 mm thickness).
• Sustainable packaging: delivered in plastic‑free packaging; FSC and PEFC certified options available.
• Durable finish: powder‑coated frame for long service life.

Modular Customization and Accessories

• Shelves: depths 300 or 400 mm with tilt options 0°/10°/15°, shelf capacity up to 15 kg.
• Perforated panels: for tool and equipment organization.
• LED lighting: microprism diffusion, adjustable angle, 5000K color temperature.
• Power strip: multiple type F outlets with surge protection and master switch.
• Additional accessories: monitor arms, keyboard trays and modular storage units for IT and technical tasks.

Additional Information

• Typical lead time: 2–3 weeks.
• Delivered as an easy‑to‑assemble kit.
• Warranty: 5 years on metal components.

Technical specifications

• Height adjustment: electric, 715–1215 mm.
• Load capacity: 160 kg.
• Motor speed: 38 mm/s.
• Memory: up to 4 height presets.
• Worktop examples: 1190 x 690 mm; 1790 x 790 mm; other sizes available up to 2000 x 800 mm.
• Worktop thickness: 25 mm.
• Frame material: powder‑coated steel.
• Surface: laminated particleboard with melamine coating.
• Frame colours: Light Grey (RAL 7035), Anthracite Grey (RAL 7016) or mixed finishes.
• Shelf depths: 300 or 400 mm (tilt 0°/10°/15°), capacity up to 15 kg.
• LED: microprism diffusion, 5000K.
• Power strip: multiple type F outlets with surge protection and master switch.
• Collision protection: integrated sensors (DIN EN 14738 referenced).
• Warranty: 5 years on metal components.
