Industrial workstation Summit Flex
for workshopsassemblyfor laboratory

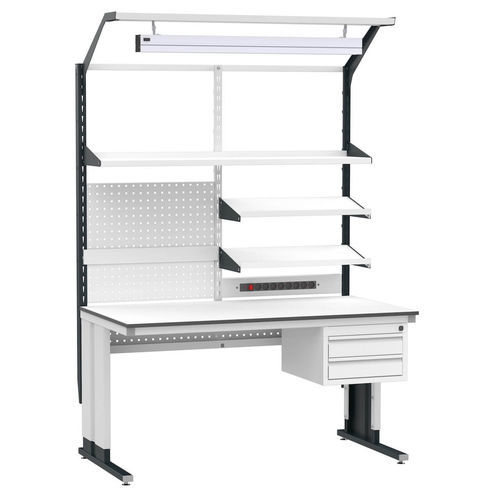

Industrial workstation - Summit Flex - Forison - for workshops / assembly / for laboratory
Industrial workstation - Summit Flex - Forison - for workshops / assembly / for laboratory
Add to favorites
Compare this product
Go to the Forison website for more information

Characteristics

Applications
industrial, for workshops, assembly, for laboratory
Other characteristics
modular, ergonomic, manual, height-adjustable

Description

Overview
  • The Summit Flex workbench is a professional, modular and ergonomic workstation designed for electronics manufacturing, assembly, laboratories and R&D. A robust steel C-frame, manual height adjustment and a wide range of accessories deliver a versatile solution for industrial workspaces.


Construction and ergonomics
  • Steel C-frame: stable, durable frame with a load capacity up to 300 kg.
  • Manual height adjustment: adjustable from 705 to 1120 mm for seated and standing operation.
  • Frame finish and colours: powder-coated in Light Grey (RAL 7035), Anthracite Grey (RAL 7016) or MIX RAL7035/7016.


Materials and finish
  • Worktop: 25 mm laminated chipboard with melamine surface, scratch‑resistant and easy to clean.
  • Frame: powder-coated steel for corrosion and wear resistance.


Equipment and accessories
  • Shelves: 1 full-length and 2 half-length shelves; standard depth 300 mm (optional 400 mm); adjustable angle 0°/10°/15°; load capacity 15 kg per shelf.
  • Power strip: half-length, 7 type F sockets, main switch and surge protection.
  • LED lighting: micro-prismatic diffuser, 5000 K, CRI >80; adjustable angle ±60°; luminous flux / illuminance: 3822 lm / 1226 lux (up to 1600 mm), 4778 lm / 1533 lux (from 1800 mm); lifetime 50,000 h.
  • Lockable drawer module: standard 2 drawers (options 1 or 3); load capacity 40 kg; internal dimensions 336 × 491 × 91 mm.
  • Perforated back panel: EU grid format, height 300 mm for tools and accessories.
  • Container rail: half-length, load capacity 10 kg for storage bins.


Technical specifications
  • Worktop lengths: 1200 / 1500 / 1600 / 1800 / 2000 mm.
  • Worktop widths: 700 / 800 / 900 mm.
  • Height adjustment range: 705–1120 mm.
  • Worktop thickness: 25 mm.
  • Load capacity: 300 kg (evenly distributed).
  • Colours: RAL 7035 / RAL 7016 / MIX 7035/7016.
  • Shelves: depth 300 mm (optional 400 mm); tilt 0°/10°/15°; 15 kg per shelf.
  • LED lighting: 5000 K, CRI >80; lifetime 50,000 h; luminous flux values as above.
  • Drawer module: total load capacity 40 kg; internal dimensions 336 × 491 × 91 mm.
  • Perforated back panel height: 300 mm (EU grid).
  • Container rail load capacity: 10 kg.


Applications
  • Suitable for electronics production, assembly lines, laboratories, R&D, technical maintenance and industrial workstations where modularity and ergonomics are required.


Warranty and delivery
  • 5 years warranty on metal components.
  • Lead time typically 2–3 weeks depending on configuration; customization and expedited shipping options available in Europe and worldwide.
