Planetary kneader JCT VK series

verticalbatchsolid/liquid

Overview

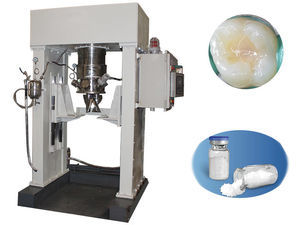

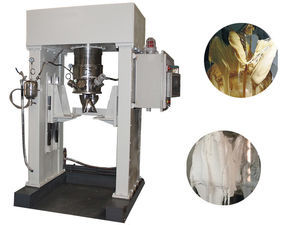

JCT Machinery JCT VK series vertical kneaders are mixing and kneading machines designed for medium- to high-viscosity materials such as rubber, plastics, adhesives, resins and other polymer compounds. The vertical configuration promotes material circulation and uniform dispersion within the mixing chamber.

Features and Capabilities

• Vertical design to improve flow and reduce dead zones
• DUPLEX kneading blades with combined planetary and rotational motion
• Temperature-controlled mixing chamber (jacketed)
• User-oriented controls and accessible maintenance points
• Multiple capacity models suitable for R&D, pilot and production
• Safety features with optional explosion-proof variants and vacuum degassing

Technical Data
Model | Volume (L) | Central Kneading Blade (RPM) | Rotating Kneading Blade (RPM) | Drive Power (KW)
JCT VK 1 | 0.5 | 2.3-23 | 10.4-104 | 0.12
JCT VK 5 | 2.5 | 1.6-16 | 8.8-88 | 0.37
JCT VK 25 | 12.5 | 1.5-15 | 7.8-88 | 1.5
JCT VK 50 | 25 | 2-16 | 8-64 | 2.2
JCT VK 100 | 50 | 1.5-14 | 6-56 | 4
JCT VK 200 | 100 | 1.3-11 | 6.5-56 | 5.5
JCT VK 400 | 200 | 1.5-12 | 6-48 | 11
JCT VK 800 | 400 | 1.2-9 | 6.5-49 | 18.5
JCT VK 1600 | 800 | 0.9-9 | 4.2-42 | 45
JCT VK 3200 | 1600 | 1-9 | 4-36 | 75

Design and Internal Structure

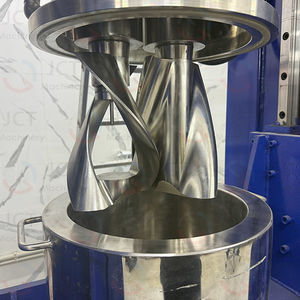

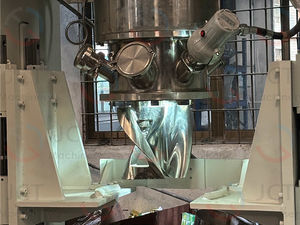

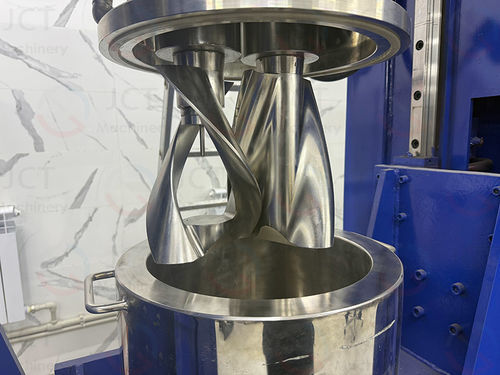

The machine uses a vertical mixing chamber with a jacket for thermal control. DUPLEX kneading blades provide strong shear and kneading action; each blade rotates on its axis while orbiting the central axis (planetary motion), producing large circular coverage and minimising dead zones for improved dispersion and easier cleaning.

Temperature & Process Control
Equipped with a temperature control system for precise regulation of the kneading chamber. Options include vacuum degassing and precise bottom scraping for clean discharge; suitable for temperature-sensitive formulations and processes requiring repeatable thermal profiles.

Applications

• Dental raw materials and compounds
• Aerospace and specialty polymer materials
• Graphite and conductive composites
• Silicone resin composites
• Medical-grade polymer formulations
• Electronic thermal interface and sealing materials
• High-viscosity, high-solids formulations in chemical, pharmaceutical, food and cosmetic sectors

About the Product Offer
JCT Machinery designs and manufactures the JCT VK vertical kneader series in multiple sizes to match laboratory R&D, pilot runs and production needs. The vertical kneader addresses common issues of horizontal designs, such as shaft-seal leakage and difficult-to-clean corners, and offers configurable options to meet industry requirements.

Technical specifications

• Series: JCT VK series (multiple capacities available)
• Structure: Vertical mixing chamber with jacket
• Agitation: DUPLEX kneading blades with combined planetary + rotational movement
• Temperature control: Advanced regulation of the kneading chamber
• Drive power range: 0.12 kW to 75 kW depending on model
• Volume range: 0.5 L to 1600 L (per table above)
• Typical blade speed ranges: central blade ~0.9–2.3 rpm ranges across models; rotating blade ~4–104 rpm ranges across models
• Options: vacuum degassing, explosion-proof versions, precision bottom scrapers
