Planetary kneader

verticalbatchsolid/liquid

Product overview
Vertical kneader with vertical planetary double-paddle structure designed for uniform mixing, kneading and dispersion of high-viscosity, high-elasticity and powder materials. Suited for R&D labs and small-batch high-value production. Applicable viscosity range: ~10,000 cP to 2,000,000 cP.

Applications

• Organosilicon composites: anticorrosive silicone resin coatings, electronic potting compounds.
• Medical polymers: dental impression silicones, medical hydrogels, bone cement, polymer bases for prosthetic joints, adhesive patches.
• Carbon-fiber reinforced polymers: carbon prepreg resins, high thermal-conductivity CF composite slurries, aerospace-grade epoxy matrices.
• Energetic materials: solid propellants, energetic formulations, pyrotechnic dispersions.
• Electronic thermal interface materials: thermally conductive silicones, conductive gels, phase-change thermal materials, high-conductivity epoxy encapsulants.
• Ceramic matrix composites: ceramic slurries, MIM/CIM feedstocks, advanced ceramic precursors.

Equipment parameters (10L)
Volume: 10 L
Working fill: 60%–80%
Mixing method: vertical planetary double-paddle kneading
Main motor power: 3–7.5 kW (optional)
Speed range: 0–60 rpm (VFD)
Construction materials: SS304 / SS316 / carbon steel lined with stainless steel
Heating: electric / thermal oil / hot water (optional)
Design pressure: atmospheric or slight vacuum (up to -0.098 MPa)
Discharge: bottom discharge

Key features

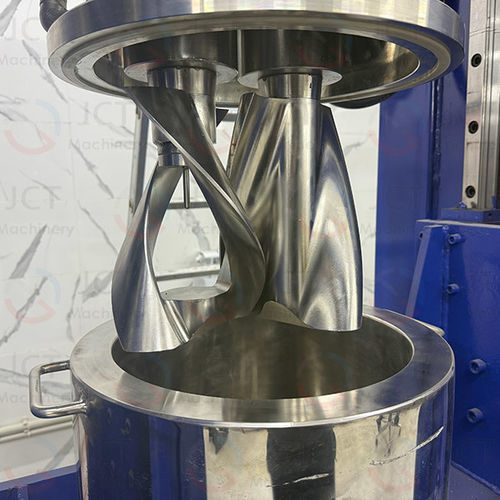

• Uniform mixing without dead zones: two meshing planetary blades provide rotation and revolution for strong shearing, stretching and kneading in the 10 L chamber.
• Vertical shaft arrangement prevents shaft-seal contamination: shaft and bearings positioned above product level to avoid material ingress into seals and lubricant contamination.
• Precise temperature control and vacuum capability: jacketed cylinder compatible with temperature controller, direct material temperature sensing and high-sealing design for vacuum degassing.
• Easy cleaning and low residue: hydraulic cylinder lifts the kneading cylinder away from blades for complete discharge and fast cleaning, suitable for frequent formulation changes.

Customized options

• Explosion-proof configurations (BT4/CT4) with explosion-proof control cabinets.
• Special materials: Hastelloy or surface coatings for strong acids/alkalis and highly abrasive materials.
• Intelligent control: optional PLC touch HMI for real-time recording of temperature, speed, vacuum and torque curves.
• Full non-standard customization to match material properties and process requirements.

Specifications / technical data

• Model: 10L Vertical Kneader
• Nominal volume: 10 L
• Recommended working fill: 60%–80%
• Mixing method: vertical planetary double-paddle
• Main motor: 3–7.5 kW (configurable)
• Speed control: 0–60 rpm via VFD
• Materials: SS304, SS316 or carbon steel lined with stainless steel
• Heating options: electric / thermal oil / hot water
• Vacuum capability: up to -0.098 MPa
• Discharge: bottom discharge with hydraulic lift for cylinder separation
