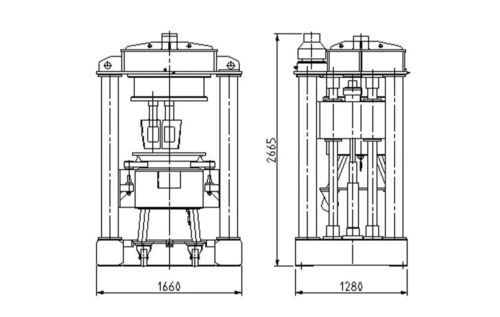

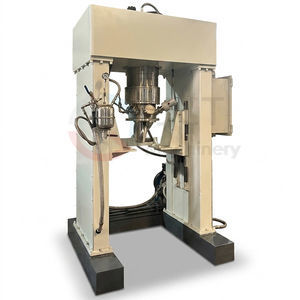

Vertical mixer Vertical kneader

batchsolid/liquidfor high-viscosity materials

Product overview
JCT Machinery: The vertical kneader is an industrial mixing machine designed to mix and knead high‑viscosity materials. Its structural components enable intensive mixing, folding and compression while allowing optional temperature control to meet varied production requirements.

Main components and functions

• Mixing chamber: Central part, typically cylindrical or conical; primary zone for mixing, kneading and stirring. Capacity is selected according to application and production needs.
• Agitator: Spiral or blade configuration; performs stirring, folding and compression actions to achieve homogeneity of high‑viscosity formulations.
• Motor: Mounted usually on top; provides rotational drive transmitted to the agitator via mechanical linkage.
• Jacket: Optional jacket for external heating or cooling to control mixture temperature when required by the formulation.
• Feed and discharge ports: One or more inlets for raw materials and outlets for discharging the mixed product.
• Control system: Buttons, switches and digital displays to set and monitor mixing time, speed, temperature and other process parameters.

Function summary
These components work in concert to enable effective mixing and kneading of viscous materials through combined agitation, folding and compression, with process control and optional thermal management for industrial production.

Characteristics / technical specifications

• Equipment type: Vertical kneader
• Mixing chamber shape: Cylindrical or conical
• Mixing chamber capacity: Variable by model and application
• Agitator types: Spiral or blade
• Drive: Motor mounted on top with mechanical transmission to agitator
• Temperature control: Optional jacket for heating/cooling
• Material handling: Feed ports and discharge ports
• Control features: Buttons, switches and digital displays for time, speed and temperature control
• Application: Mixing and kneading high‑viscosity materials across industries
