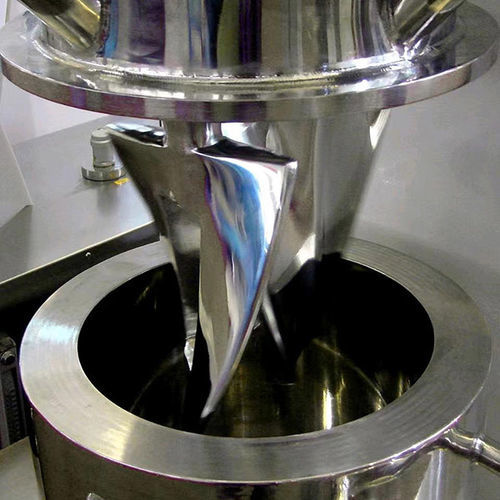

Planetary mixer VK series

verticalcontinuousbatch

Overview
The VK series dental resin vertical kneader is a vertical mixing and kneading machine engineered for processing high‑viscosity dental resins, dental composites and medical polymer compounds under controlled vacuum and temperature conditions.

Key Features

• High‑viscosity mixing: continuous squeezing, shearing and folding action to process thick, high‑solid formulations
• Filler dispersion: dedicated mixing blades to disperse inorganic fillers uniformly and minimize agglomerates
• Vacuum mixing and degassing: sealed vacuum capability to reduce air entrapment and bubbles
• Temperature control option: jacketed heating/cooling shell with external temperature control unit for thermosensitive systems
• Enclosed production: minimizes external contamination and facilitates vacuum processing
• Top-mounted seal isolated from product to reduce contamination risk
• Near‑zero risk of black specks/metal contamination due to sealed design
• No dead zones: superimposed planetary motion ensures homogeneous mixing
• Hydraulic lifting and wall‑scraping for easy cleaning and discharge
• Powerful degassing for very high‑viscosity pastes by thin‑layer shearing plus high vacuum
• Material-contact parts can be stainless steel and mirror‑polished for medical‑grade cleanliness

Materials Suitable

• Dental composite resins
• Dental filling resins
• Light‑cured dental resins
• Temporary restorative materials
• Dental bonding agents
• Medical polymer composites
• Resin‑matrix composites
• High‑viscosity resin and filler systems

Equipment Parameters
Model | Full Volume /L | Useful Volume /L | Min Volume /L | Power /kW | Pericentric Blade Speed /rpm | Telecentric Blade Speed /rpm | Revolution Speed /rpm | Vacuum Abs Pressure /kPa
VK-10 | 16.9 | 12 | 2 | 5.5 | 0~25 | 0~50 | 0~6 | <1.5
VK-100 | 135 | 100 | 15 | 22 | 0~25 | 0~50 | 0~6 | <1.5
VK-500 | 500 | 350 | 60 | 37 | 0~22.5 | 0~45 | 0~6 | <1.5
VK-1000 | 1000 | 600 | 120 | 45 | 0~22.5 | 0~45 | 0~6 | <1.5
VK-2000 | 2000 | 1200 | 200 | 55 | 0~20 | 0~40 | 0~6 | <1.5
VK-3000 | 3000 | 1800 | 300 | 75 | 0~20 | 0~40 | 0~5 | <1.5
VK-5000 | 5000 | 3000 | 500 | 110 | 0~18 | 0~36 | 0~5 | <1.5

Structural Characteristics

• Top-mounted seal isolated from material to reduce contamination
• Ultra‑low risk of black specks/metal contamination (near‑zero leakage)
• No mixing dead zones due to superimposed planetary motion
• Hydraulic lifting with wall‑scraper for easy cleaning and discharge
• Extremely powerful degassing via thin‑layer shearing combined with high vacuum

Why Choose This Vertical Kneader?

• 01 Designed for intensive mixing of high‑viscosity dental formulations with high filler loadings
• 02 Specialized blades improve filler wetting and dispersion to reduce agglomeration
• 03 Vacuum mixing and degassing option lowers air inclusion and bubble defects
• 04 Jacketed temperature control manages exotherm for heat‑sensitive resin systems
• 05 Closed design and stainless‑steel mirror‑polished contact parts meet medical cleanliness requirements

Characteristics / Technical specifications

• Mixing principle: superimposed planetary motion to eliminate dead zones
• Seal design: top seal isolated from product to minimize contamination and leakage
• Degassing: thin‑layer shearing plus high vacuum for efficient air removal in viscous pastes
• Cleaning: hydraulic lifting and mirror‑polished contact surfaces for easy scraping and cleaning
• Temperature control: jacketed vessel with optional external temperature control unit
• Material compatibility: light‑cure resins, filler‑rich systems, medical polymer composites and other high‑viscosity resin/filler formulations
