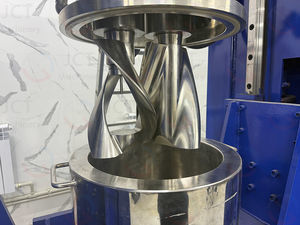

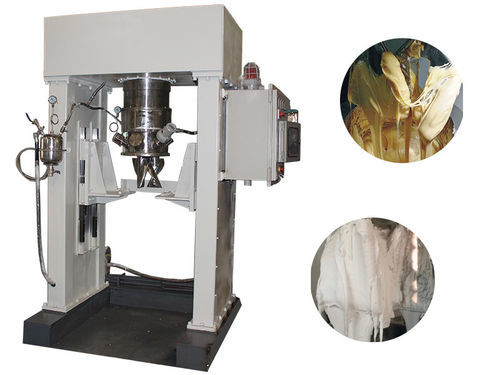

Planetary kneader VK series

verticalbottom-entrybatch

Overview
JCT’s vertical kneader, specifically engineered for silicone resin composites, features powerful planetary mixing and a precision bottom-scraping design. It effectively solves the challenges associated with kneading high-viscosity, temperature-sensitive, and shaft-clinging materials. The system ensures thorough mixing with no dead zones and clean discharge, facilitating highly efficient production.

Key capabilities

• Operating mode: Planetary type (zero dead zones)
• Viscosity handling: 800,000 cP to 20,000,000 cP
• Temperature control range: ambient (or 0) to 220℃
• Vacuum capability: 0 to -0.098 MPa (ultra-high vacuum performance described below)
• Available scales: Laboratory, pilot-scale, production-scale

Product details
Silicone-based composites are composite materials that utilize silicone resin as the matrix and incorporate fillers or fibers (or fiber fabrics) for reinforcement. They possess the inherent characteristics of silicone resins while also exhibiting the excellent properties associated with other composite materials. Key product series include optically transparent composites, porous materials, soft magnetic composites, coatings and adhesives, thermally and electrically conductive composites, high-temperature and high-strength composites, and specialized materials for aerospace applications.

Silicone Resin Composites Vertical Kneader Equipment Parameters
Model | Dimension H*L*W (mm) / Weight | Barrel Inner Size D*H (mm) | Full Volume (L) | Useful Volume (L) | Min Volume (L) | Power (KW) | Pericentric Blade Speed (rpm) | Telecentric Blade Speed (rpm) | Revolution Speed (rpm) | Clearance (MM) | Vacuum Abs Pressure (kPa)
VK-10 | 2600*1600*1400 / 2.5t | 300*240 | 16.9 | 12 | 2 | 5.5 | 0~25 | 0~50 | 0~6 | 3±0.5 | <1.5
VK-100 | 3200*2000*1600 / 6t | 600*480 | 135 | 100 | 15 | 22 | 0~25 | 0~50 | 0~6 | 4.5±0.5 | <1.5
VK-500 | 4200*2500*2000 / 12t | 900*800 | 500 | 350 | 60 | 37 | 0~22.5 | 0~45 | 0~6 | 5.5±0.5 | <1.5
VK-1000 | 5100*3000*2500 / 24t | 1200*1100 | 1000 | 600 | 120 | 45 | 0~22.5 | 0~45 | 0~6 | 6±1 | <1.5
VK-2000 | 6000*4200*3000 / 32t | 1400*1300 | 2000 | 1200 | 200 | 55 | 0~20 | 0~40 | 0~6 | 7±1 | <1.5
VK-3000 | 6500*4600*3400 / 35t | 1600*1500 | 3000 | 1800 | 300 | 75 | 0~20 | 0~40 | 0~5 | 8±1 | <1.5
VK-5000 | 7300*5000*3600 / 40t | 1900*1800 | 5000 | 3000 | 500 | 110 | 0~18 | 0~36 | 0~5 | 9±1 | <1.5

Advanced solutions & benefits

• Ultra-high vacuum capacity: capable of evacuating the mixer to a vacuum level of ~40 Pa, with a vacuum leakage rate of ~1 Pa/10 s.
• Designed to solve mixing challenges for high viscosity and high powder content materials, improving production efficiency and mixing quality.
• Specialized leak-proof design to resolve common oil leakage in silicone processing equipment.
• Portable feeding system to reduce footprint, improve formula management, lower labor intensity, and mitigate environmental and contact-related risks.
• High-efficiency temperature control with rapid heating and cooling to address cooling-efficiency challenges in silicone processing.

Characteristics / Technical specifications

• Brand: JCT Machinery
• Operating mode: Planetary-type vertical kneading with bottom-scraping
• Viscosity range handled: 800,000 cP to 20,000,000 cP
• Temperature range: 0–220℃ (ambient to 220℃)
• Vacuum capability: up to ~40 Pa achievable; leakage rate ~1 Pa/10 s; typical vacuum range 0 to -0.098 MPa
• Available model series: VK series (VK-10, VK-100, VK-500, VK-1000, VK-2000, VK-3000, VK-5000)
• Power range (examples by model): 5.5 KW (VK-10) up to 110 KW (VK-5000)
• Typical blade/revolution speed ranges shown per model (pericentric/telecentric/revolution)
• Clearance tolerance: typically in the range of 3±0.5 mm to 9±1 mm depending on model
• Designed for thorough mixing with no dead zones and clean discharge
