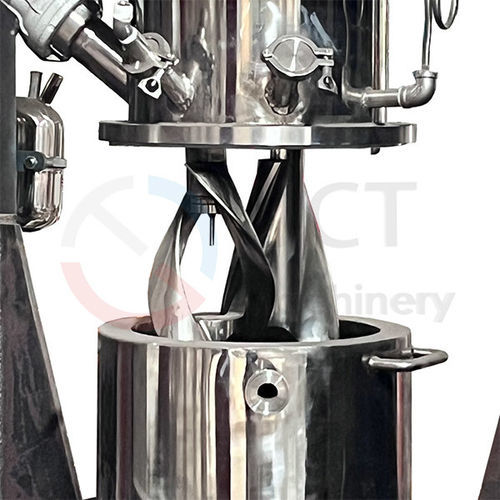

Planetary mixer VK series

verticalbatchsolid/liquid

Product overview
JCT's vertical kneader for fiber‑resin composites uses a top‑suspended mixing shaft combined with a planetary double‑blade trajectory to enable intense kneading of high‑viscosity resins while minimizing mechanical damage to fibers. The design isolates seals and bearings above the material zone to prevent contamination and leakage into the mixture.

Performance and application
Fiber‑reinforced resin composites pair a matrix (resin, metal or ceramic) with high‑performance fibers (glass, carbon, aramid) to achieve high specific strength, stiffness and dimensional stability. Final material properties depend critically on fiber‑to‑matrix dispersion and wetting. This kneader targets industrial production of fiber‑resin composites where uniform mixing, degassing and precise temperature control are required (aerospace, electronics, advanced composites manufacturing).

Key mixing capabilities

• Effective mixing of short fibers (1–10 mm) at fiber weight ratios above 50%.
• Effective mixing of long fibers (30–50 mm) at fiber weight ratios up to ~50%.

Design advantages

• Top‑mounted agitator shaft — dynamic seals and bearings positioned above the vessel, outside the material zone, eliminating material‑zone contamination and seal/ bearing ingress into the product.
• Planetary kneading trajectory (3D shear and inter‑peeling) — two blades rotate on their own axes while orbiting the vessel center, producing intensive shearing and compression between blades and vessel wall for uniform kneading.
• Gentle on fibers (reduced breakage) — optimized blade clearance and shear levels ensure full wetting of high‑viscosity resins with fibers (including long glass/carbon fibers) while minimizing shear‑induced fiber breakage.
• High vacuum and jacketed temperature control — vessel supports high vacuum (up to approx. -0.098 MPa) for degassing and moisture removal; jacketed design allows circulation of water or oil for precise thermal management.

Equipment parameters
Header: Model | Dimension H*L*W (mm) / Weight | Barrel Inner Size D*H (mm) | Full Volume (L) | Useful Volume (L) | Min Volume (L) | Power (kW) | Pericentric Blade Speed (rpm) | Telecentric Blade Speed (rpm) | Revolution Speed (rpm) | Clearance (mm) | Vacuum Abs Pressure (kPa)
VK-10 | 2600*1600*1400 / 2.5t | 300*240 | 16.9 | 12 | 2 | 5.5 | 0~25 | 0~50 | 0~6 | 3±0.5 | <1.5
VK-100 | 3200*2000*1600 / 6t | 600*480 | 135 | 100 | 15 | 22 | 0~25 | 0~50 | 0~6 | 4.5±0.5 | <1.5
VK-500 | 4200*2500*2000 / 12t | 900*800 | 500 | 350 | 60 | 37 | 0~22.5 | 0~45 | 0~6 | 5.5±0.5 | <1.5
VK-1000 | 5100*3000*2500 / 24t | 1200*1100 | 1000 | 600 | 120 | 45 | 0~22.5 | 0~45 | 0~6 | 6±1 | <1.5
VK-2000 | 6000*4200*3000 / 32t | 1400*1300 | 2000 | 1200 | 200 | 55 | 0~20 | 0~40 | 0~6 | 7±1 | <1.5
VK-3000 | 6500*4600*3400 / 35t | 1600*1500 | 3000 | 1800 | 300 | 75 | 0~20 | 0~40 | 0~5 | 8±1 | <1.5
VK-5000 | 7300*5000*3600 / 40t | 1900*1800 | 5000 | 3000 | 500 | 110 | 0~18 | 0~36 | 0~5 | 9±1 | <1.5

Design advantages (concise)

• Top‑mounted shaft and above‑vessel seals/bearings for zero material‑zone contamination.
• Planetary double‑blade orbital action providing 3D shear, inter‑peeling and strong kneading.
• Optimized blade clearance and shear to minimize fiber breakage and ensure thorough wetting.
• Vacuum‑capable vessel and jacketed thermal control for degassing and precise process temperature control.

Technical characteristics / specifications

• Product family: VK series (VK-10 to VK-5000).
• Top‑suspended mixing shaft, planetary double‑blade structure.
• Suitable for both short and long fiber formulations at high fiber loadings (up to ~50% by weight).
• Full volumes from ~16.9 L to 5000 L; motor power range approx. 5.5 kW to 110 kW depending on model.
• Variable pericentric/telecentric/revolution speeds to tune kneading intensity.
• High‑vacuum degassing capability (<1.5 kPa absolute pressure indicated) and jacketed heating/cooling for thermal process control.
• Applications: advanced fiber‑resin composites for aerospace, electronics, automotive and industrial manufacturing where purity, uniformity and fiber integrity are critical.
