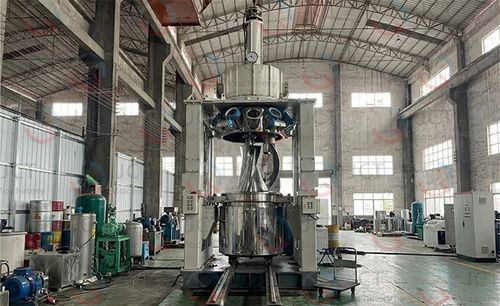

Paddle mixer VK-2000

verticalbatchsolid/liquid

Overview
The VK-2000 explosion-proof vertical kneader by JCT Machinery is an inherently safe, PLC-controlled mixing system designed for rocket propellants and high-hazard polymer composites. Military/aerospace grade construction. Fully hydraulic, zero-electrical-spark drive architecture. Industry 4.0 data logging. Available capacities: 10 L–5000 L.

Highlights

• Military/Aerospace grade design
• Fully hydraulic, zero-electrical-spark explosion-proof architecture
• Continuous PLC monitoring and data logging (Industry 4.0)
• Capacity range: 10 L–5000 L

Equipment Parameters (excerpt)
Model | Full Volume (L) | Useful Volume (L) | Min Volume (L) | Power (kW) | Pericentric Blade Speed (rpm) | Telecentric Blade Speed (rpm) | Revolution Speed (rpm) | Clearance (mm) | Vacuum Abs Pressure (kPa)
VK-2000 | 2000 | 1200 | 200 | 55 | 0–50 | 0–100 | 4–5 | 7±1 | <1.5

Core Technical Advantages

• 01 Inherent safety: Zero-electrical-spark hydraulic drive and explosion-proof hydraulic power unit with pneumatic control remove ignition sources associated with electric drives and static.
• 02 Mixing concept: Hybrid twin-shaft system pairing hollow high-speed paddles with solid low-speed paddles to combine intense micro-shear and robust macro transport.
• 03 Dead-zone-free processing: Low-speed solid paddles (0–50 rpm) provide bulk turnover; high-speed hollow paddles (0–100 rpm) provide dispersion; 4–5 rpm orbital revolution ensures uniformity without dead zones.
• 04 Industry 4.0: Industrial PLC provides real-time control of temperature, pressure, torque, speed and viscosity with comprehensive data logging and traceability for R&D and production optimization.

Application Scenarios

• Aerospace propellant manufacturing: Uniform mixing of high-viscosity, high-hazard solid rocket propellants.
• Specialty chemicals & defense materials: Safe processing of electrostatically charged, flammable or explosive powders with viscous liquids.

Technical characteristics / specifications

• Model: VK-2000
• Full volume: 2000 L
• Useful volume: 1200 L
• Minimum volume: 200 L
• Power: 55 kW
• Pericentric (solid paddle) speed: 0–50 rpm
• Telecentric (hollow paddle) speed: 0–100 rpm
• Orbital revolution speed: 4–5 rpm
• Clearance: 7 ± 1 mm
• Vacuum absolute pressure: <1.5 kPa
• Drive architecture: Fully hydraulic, zero-electrical-spark; high-torque hydraulic motor for direct drive
• Shaft/paddle design: Hybrid hollow high-speed + solid low-speed for dead-zone-free mixing
• Control: Industrial PLC with continuous monitoring, data logging and traceability
• Capacity range: 10 L–5000 L (customizable models)
