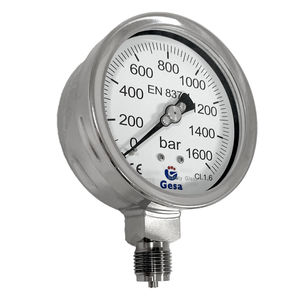

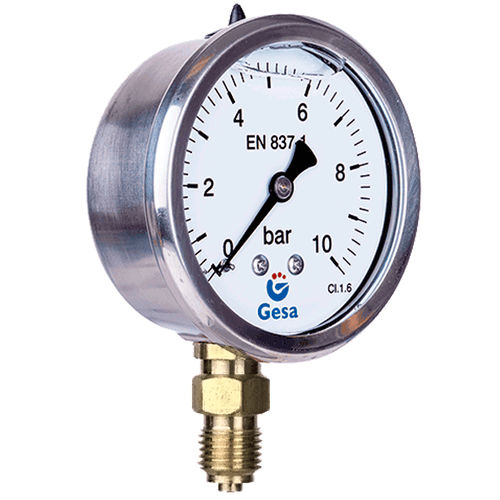

Relative pressure gauge M0301 series dialthreadedflange
Add to favorites
Compare this product
Characteristics
- Pressure type
- relative
- Display
- dial
- Mounting
- threaded, flange, panel-mount, built-in, back mount, wall-mounted, vertical-mount
- Process connection
- NPT 1/4, G 1/2, G 1/4, NPT 1/2, BSP 1/4, M20 x 1,5, G 3/8
- Material
- stainless steel, brass
- Technology
- Bourdon tube
- Protection level
- IP65
- Applications
- process, for liquids, for vacuum, for HVAC, for the food industry, for pharmaceutical applications, for marine applications
- Other characteristics
- glycerin-filled, OEM, compact
- Pressure
Max.: 1,000 bar
(14,503.77 psi)Min.: -1 bar
(-14.5 psi)- Precision
1.6 %
- Dial diameter
63 mm, 80 mm, 100 mm
(2.5 in, 3.1 in, 3.9 in)- Process temperature
Max.: 80 Ā°C
(176 Ā°F)Min.: -20 Ā°C
(-4 Ā°F)
Description
The M0301 glycerin-filled pressure gauges, with stainless steel case and brass thread, are the perfect solution for a wide range of applications, such as irrigation systems, marine environments, or HVAC installations. Their design combines high functionality with a competitive price, making them an ideal choice for those seeking quality without compromising budget.
Features: Thanks to their hermetic seal, these pressure gauges offer IP65 protection against dust and liquids, ensuring reliable performance even in demanding conditions. With an accuracy class of 1.6, they are suitable for all types of installations, from maintenance to new construction projects.
Specifications
Dislay: Polycarbonate
Case closing: Sealed ring
Moving parts material: Copper alloy
Elastic element: Bourdon tube
Antivibration fluid: Glycerine
Catalogs
M0301 series
1 Pages
