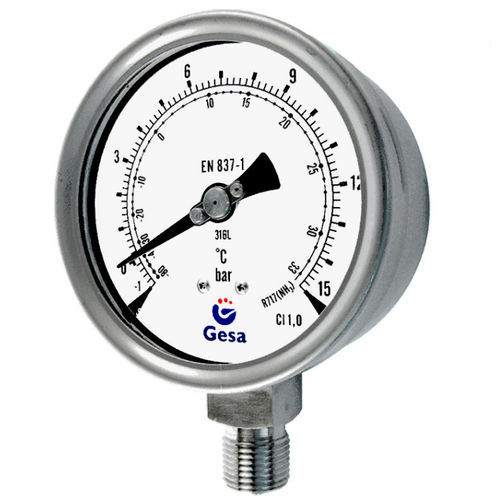

Relative pressure gauge M0702 seriesdialthreadedvertical-mount
Add to favorites
Compare this product
Characteristics
- Pressure type
- relative
- Display
- dial
- Mounting
- threaded, vertical-mount
- Process connection
- NPT 1/4, G 1/2, G 1/4, NPT 1/2, BSP 1/4, M20 x 1,5, NPT 1/8, G 1/8, R 3/8, G 3/8, R 1/2, R 1/4
- Material
- stainless steel
- Technology
- Bourdon tube
- Protection level
- IP65
- Applications
- for gas, for liquids, for refrigeration application, for ammonia refrigerant
- Other characteristics
- OEM
- Pressure
Max.: 25 bar
(362.59 psi)Min.: -1 bar
(-14.5 psi)- Precision
1 %
- Dial diameter
100 mm
(3.9 in)- Process temperature
Max.: 65 Ā°C
(149 Ā°F)Min.: -40 Ā°C
(-40 Ā°F)
Description
Pressure gauges all in stainless steel for ammonia M0702
Ammonia Refrigeration Pressure Gauge
Description: Measures pressure and temperature of ammonia (NH3) refrigerant. Suits corrosive liquid or gaseous media. For non-obstructive systems. Not for severe vibrations.
Construction: Meets EN 837-1. With Bourdon tube.
Applications: Ideal for refrigeration, air conditioning, food industry.
Specifications
Display: Glass
Closure of the case: Bayonett
Scale: bar/R717(NH3
Moving parts material: Stainless steel AISI 316
Elastic element: Bourdon tube
Threaded connection: 1/2" BSP male
Brand: Gesa
Catalogs
M0702 series
1 Pages
