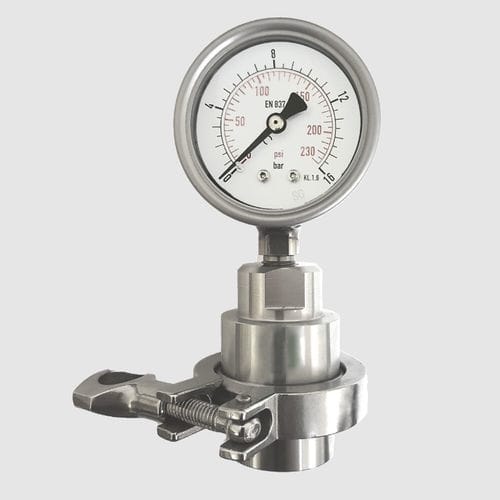

Dial pressure gauge M0306S301D63R16DR2 seriesstainless steeldiaphragmIP65
Add to favorites
Compare this product
Characteristics
- Display
- dial
- Material
- stainless steel
- Technology
- diaphragm
- Protection level
- heavy duty, IP65
- Applications
- for gas, for liquids
- Other characteristics
- with safety case
- Pressure
Max.: 16 bar
(232.06 psi)Min.: 0 bar
(0 psi)- Precision
1.6 %
- Dial diameter
63 mm
(2.5 in)- Process temperature
Max.: 150 Ā°C
(302 Ā°F)Min.: -45 Ā°C
(-49 Ā°F)
Description
Pressure gauge with stainless steel diaphragm seal for highly viscosity or corrosive fluids. Specially designed for heavy duty conditions due to the existence of vibrations or fast pressure changes.
Suitable for aggressive media.
Specifications
Case closing: Bayonet
Mounting: Radial
Transmission liquid: Silicon oil
