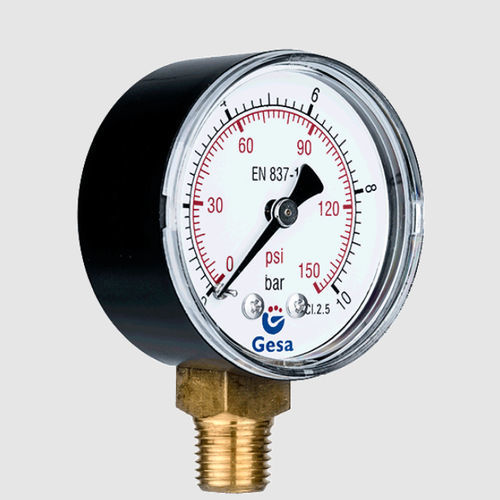

Relative pressure gauge M0101 series
dialthreadedvertical-mount

relative pressure gauge
relative pressure gauge
relative pressure gauge
relative pressure gauge
Add to favorites
Compare this product

Go to the GESA TERMOMETROS website for more information

Characteristics

Pressure type
relative
Display
dial
Mounting
threaded, back mount, vertical-mount
Process connection
NPT 1/4, BSP 1/4, NPT 1/8, G 1/8
Material
brass, plastic
Technology
Bourdon tube
Protection level
IP43
Applications
for air, for compressed gas
Other characteristics
OEM, low-pressure, compact, portable, economical
Pressure

Max.: 25 bar
(362.59 psi)

Min.: -1 bar
(-14.5 psi)

Precision

2.5 %

Dial diameter

40 mm, 50 mm, 63 mm
(1.6 in, 2 in, 2.5 in)

Process temperature

Max.: 60 °C
(140 °F)

Min.: -40 °C
(-40 °F)

Description

This pneumatic manometer for compressed air is widely used for hydraulic compressors, compressed air system, pneumatic system and, in general, with low viscosity fluids that do not attack copper alloys. Useful in systems not subjected to strong vibrations. Especially suitable for air compressors. Maximum air pressure: 25 bar. Applications: pressure gauges for compressors and pneumatic systems Case material: Polyethylene Display: Acrylic Case closing: Adjusted Scale: bar/psi Moving parts material: Copper alloy Threaded connection material: Brass
