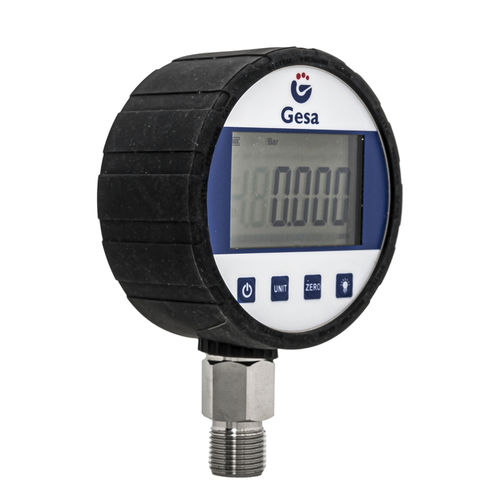

Pressure gauge with LCD display MD0906 series

stainless steelUSBfor gas

MD0906 digital pressure gauges are highly accurate and versatile instruments that allow you to check the pressure of gas, liquid, oil or any other non-corrosive medium. Its large 5-digit LCD display with is capable of displaying up to 12 different scales: Bar, mbar, psi, kPa, MPa, Pa, mmHg, mH2O, Torr, inH2O, Kgf / cm3 and ATM . The resolution adapts to each scale and pressure level, so if the pressure on one scale reaches 3 positive digits, it can only have 2 decimal places, while on another scale it could have 1 positive digit and 4 decimal places. These gauges are accurate to 0.4% of full scale. This means that according to the maximum error it will be 0.4% of the total amplitude of the pressure range. For example, in a range of -1 to 16 bar (-14.5 to 232 psi) the scale width is 17 bar (246.5 psi) and the maximum error will be 0.068 bar (0.98 psi). The instrument records the maximum and minimum readings, this memory can be erased. The sample rate is configurable from 1 to 10 times per second. Its "Zero" function allows the instrument to be recalibrated to 0 . The high manufacturing quality of these digital pressure gauges allows them to endure in extreme working conditions: -Its resistance to overpressure of up to 150% (<250 bar) means that it withstands peaks of up to 1.5 times the maximum pressure range. Additionally, a pressure level indicator is shown on the screen. -The backlit screen allows installation in dimly lit environments. The digital pressure gauge is housed in a AISI 304 stainless steel case . The connection, also made of AISI 304, is compatible with most applications.
