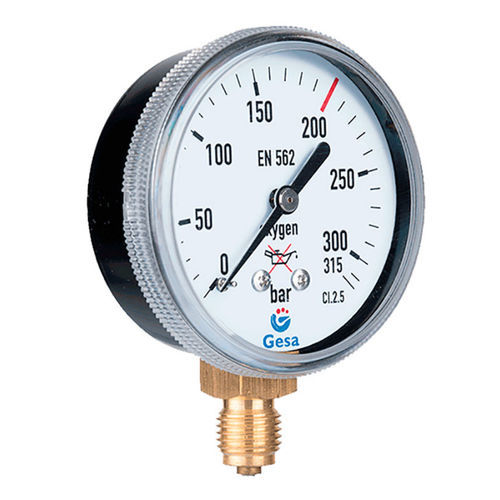

Dial pressure gauge M0601 seriesrelativethreadedback mount
Add to favorites
Compare this product
Characteristics
- Display
- dial
- Pressure type
- relative
- Mounting
- threaded, back mount, vertical-mount
- Process connection
- NPT 1/2, NPT 1/4, BSP 1/4, G 1/4, G 1/2, NPT 1/8, G 1/8, M20 x 1,5, R 3/8, R 1/2, R 1/4, G 3/8
- Material
- brass, plastic
- Technology
- Bourdon tube
- Protection level
- IP43
- Applications
- for oxygen, for welding applications
- Other characteristics
- OEM
- Pressure
Max.: 315 bar
(4,568.69 psi)Min.: 0 bar
(0 psi)- Precision
2.5 %
- Dial diameter
50 mm, 63 mm
(2 in, 2.5 in)- Process temperature
Max.: 60 Ā°C
(140 Ā°F)Min.: -40 Ā°C
(-40 Ā°F)
Description
Measures pressure in oxygen or acetylene for welding. Black carbon steel case. With elastic capsule and copper alloy movement. Meets EN 837-3. Ideal for gaseous media without vibrations. Up to 100Ā°C. Degreased and oil-free. Identified with oilcan and red cross symbol for safety.
Applications: Perfect for welding systems with oxygen or acetylene.
Specifications
Case material: Black lacquered charbon steel
Display: Acrylic
Closing: threaded
scale: bar
Sensor element: Bourdon tube
Thread: 1/4"BSP
Thread material: brass
Catalogs
M0601 series
1 Pages
