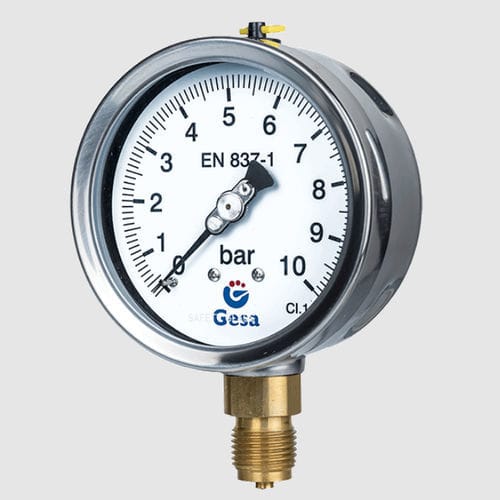

Relative pressure gauge M0304 series dialthreadedflange
Add to favorites
Compare this product
Characteristics
- Pressure type
- relative
- Display
- dial
- Mounting
- threaded, flange, panel-mount, built-in, back mount, wall-mounted, vertical-mount
- Process connection
- NPT 1/4, G 1/2, G 1/4, NPT 1/2, BSP 1/4, M20 x 1,5
- Material
- stainless steel, brass, glass
- Technology
- Bourdon tube
- Protection level
- heavy duty, IP65
- Applications
- for gas, for liquids
- Other characteristics
- precision, OEM, compact, portable, adjustable, with safety case
- Pressure
Max.: 1,000 bar
(14,503.77 psi)Min.: -1 bar
(-14.5 psi)- Precision
1 %, 1.6 %
- Dial diameter
63 mm, 100 mm, 150 mm
(2.5 in, 3.9 in, 5.9 in)- Process temperature
Max.: 80 °C
(176 °F)Min.: -20 °C
(-4 °F)
Description
The M0304 pressure gauges offer a long service life and great versatility thanks to their micrometric adjustment needle. The bayonet closure allows access to the needle for adjustments or recalibration if the instrument loses functionality.
Safety: Equipped with safety glass, they ensure safe use without risk of breakage due to overpressure. For dynamic pressures, the glycerin filling option is recommended.
Construction: Their mechanism features a Bourdon tube made of copper alloy, ideal for low-viscosity fluids that do not corrode this material. Accuracy varies by diameter: Ø100 and Ø160 mm with class 1.0 (±1.0%) and Ø63 mm with class 1.6 (±1.6%).
Installation: Compatible with flanges and mounting rings, they facilitate installation in control panels or complex systems.
Applications: Versatile and robust, the M0304 gauges are ideal for demanding conditions and aggressive environments, such as irrigation systems, HVAC installations, or industrial applications.
Specifications
Display: Safety glass
Case closing: Bayonet
Elastic element: Bourdon tube
Logo: Gesa
Catalogs
M0304 series
1 Pages
