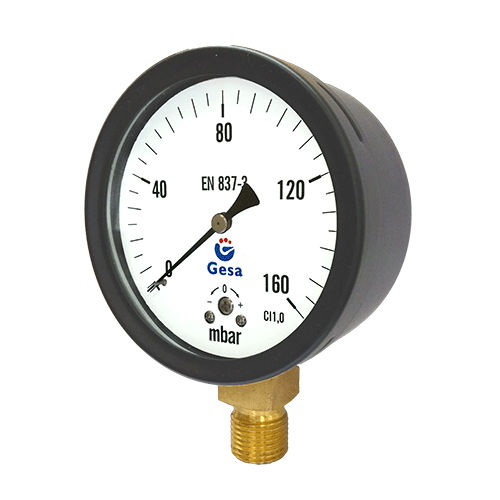

Dial pressure gauge M0401 seriesrelativevertical-mountG 1/2
Add to favorites
Compare this product
Characteristics
- Display
- dial
- Pressure type
- relative
- Mounting
- vertical-mount
- Process connection
- G 1/2, BSP 1/4, NPT 1/4, NPT 1/2, G 1/4, R 3/8, NPT 1/8, G 1/8, M20 x 1,5, R 1/2, R 1/4, G 3/8
- Material
- brass, glass
- Technology
- capsule
- Protection level
- IP43
- Applications
- for compressed gas, for tires
- Other characteristics
- OEM, low-pressure
- Pressure
Min.: 0 mbar
(0 psi)Max.: 600 mbar
(8.7 psi)- Precision
1.6 %
- Dial diameter
63 mm, 100 mm
(2.5 in, 3.9 in)- Process temperature
Min.: -40 Ā°C
(-40 Ā°F)Max.: 100 Ā°C
(212 Ā°F)
Description
Measures low pressures on a millibar scalewithmicrometric adjustement. Black steel case. Ideal for gaseous media without vibrations. Operates at -40 to 80Ā°C. Media up to 100Ā°C.
Construction: Meets EN 837-3. With elastic capsule and copper alloy components.
Applications: Perfect for gas installations and low-pressure systems in pneumatic or hydraulic circuits.
Specifications
Case material: Steel painted black
Dislay: Glass (Ć100) / Acrylic (Ć63)
Case closing: Bayonet (Ć100) / Adjusted (Ć63)
Mounting: Radial mounting
Scale: mbar
Class: 1.6 (Ć63) / 1.0 (Ć100)
Moving parts material: Copper alloy
Elastic element: Capsule
Thread material: Brass
Brand: Gesa
