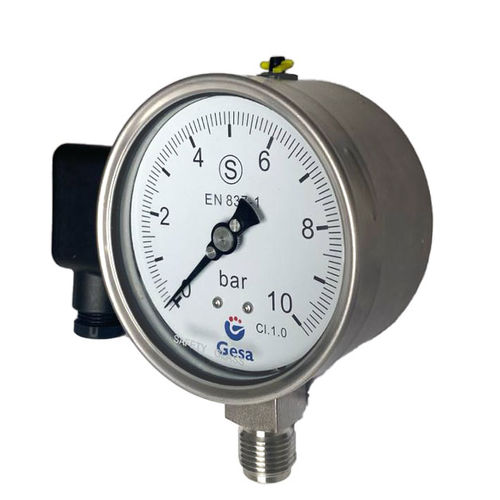

Dial pressure gauge M0306S3TP series

NPT 1/2BSP 1/2stainless steel

This high-quality Bourdon tube pressure gauge is specifically designed to withstand occasional overpressure loads, enduring up to 4 times the full-scale value for short periods without damage. Applications: Constructed with high-quality stainless steel materials and a robust design, it is ideal for applications in the chemical and process engineering industries, suitable for liquid and gaseous media, even in aggressive environments. Standards and Safety: Manufactured in accordance with EN 837-1. This safety version features a non-splintering window, a solid partition wall between the measuring system and the dial, and a rear blow-out valve. In case of failure, the operator is protected on the front side, as media or components can only be expelled from the back of the case. Options: For demanding operating conditions (e.g., vibrations), all instruments are available with an optional liquid filling.
