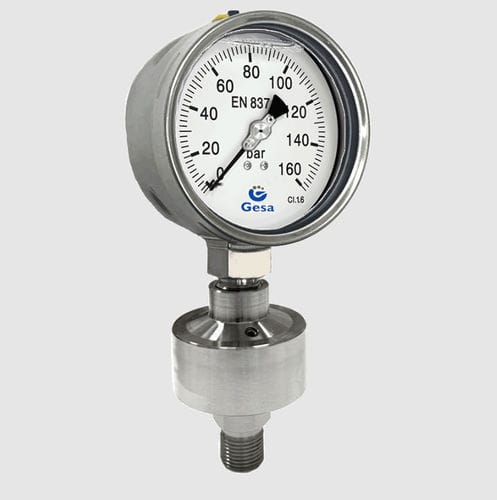

Dial pressure gauge M0306S103 seriesBSP 1/4BSP 1/2stainless steel
Add to favorites
Compare this product
Characteristics
- Display
- dial
- Process connection
- BSP 1/4, BSP 1/2
- Material
- stainless steel
- Technology
- diaphragm
- Protection level
- heavy duty, IP65
- Other characteristics
- high-pressure, with safety case
- Pressure
Max.: 600 bar
(8,702.26 psi)Min.: 0 bar
(0 psi)- Precision
1 %, 1.6 %
- Dial diameter
63 mm, 100 mm
(2.5 in, 3.9 in)- Process temperature
Max.: 150 Ā°C
(302 Ā°F)Min.: -45 Ā°C
(-49 Ā°F)
Description
Pressure gauge with stainless steel diaphragm seal for highly viscosity or corrosive fluids. Specially designed for heavy duty conditions due to the existence of vibrations or fast pressure changes.
Specifications
Case closing: Bayonet
Mounting: Radial
Transmission liquid: Silicon oil
