Relative pressure gauge M0501 series
dialthreadedpanel-mount

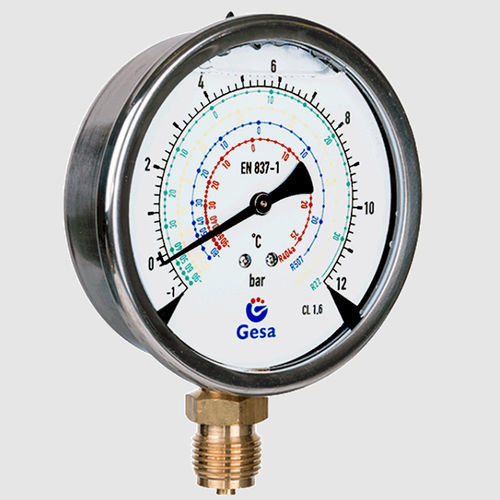

Relative pressure gauge - M0501 series - GESA TERMOMETROS - dial / threaded / panel-mount
Relative pressure gauge - M0501 series - GESA TERMOMETROS - dial / threaded / panel-mount
Relative pressure gauge - M0501 series - GESA TERMOMETROS - dial / threaded / panel-mount - image - 2
Add to favorites
Compare this product
Go to the GESA TERMOMETROS website for more information

Characteristics

Pressure type
relative
Display
dial
Mounting
threaded, panel-mount, flange, built-in, back mount, wall-mounted, vertical-mount
Process connection
G 1/2, NPT 1/4, R 3/8, NPT 1/2, G 1/4, BSP 1/4, NPT 1/8, M20 x 1,5, G 1/8, G 3/8, R 1/2, R 1/4
Material
stainless steel, brass
Technology
Bourdon tube
Protection level
IP65
Applications
for refrigerant gas
Other characteristics
glycerin-filled, OEM
Pressure

Max.: 24 bar
(348.09 psi)

Min.: -1 bar
(-14.5 psi)

Precision

1.6 %

Dial diameter

63 mm, 100 mm
(2.5 in, 3.9 in)

Process temperature

Max.: 50 °C
(122 °F)

Min.: -20 °C
(-4 °F)

Description

M0501 Refrigeration Pressure Gauge with Stainless Steel Case and Hermetic Seal Description: Designed to measure the pressure of R22, R134a, R404a, and R507 refrigerants, this pressure gauge is ideal for refrigeration systems. Its robust construction makes it perfect for demanding environments with vibrations or rapid pressure changes. Standards and Materials: Manufactured in accordance with EN 837-1, it features a Bourdon tube made of copper alloy, suitable for low-viscosity fluids that do not corrode this material. Applications: Especially suited for refrigeration installations and industrial applications requiring resistance to harsh conditions. Specifications Display: Polycarbonate Case closing: Sealed ring Scale: bar/R22/R134a/R404a/R507 Class: 1.6 Moving parts material: Copper alloy Elastic element: Bourdon tube Threaded connection material: Brass Antivibration fluid: Glycerine
