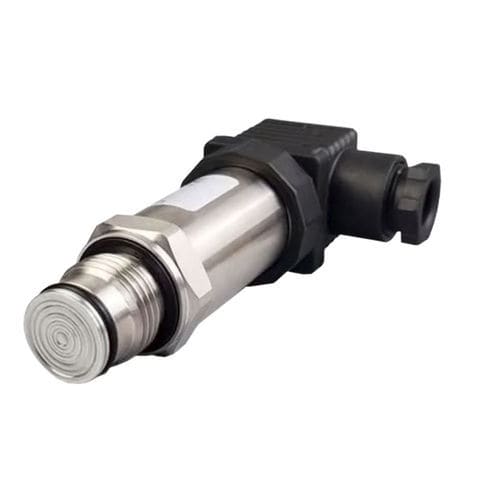

Relative pressure transmitter TP488F seriespiezoresistive4-20 mA12VDC
Add to favorites
Compare this product
Characteristics
- Pressure type
- relative
- Technology
- piezoresistive
- Output
- 4-20 mA
- Supply voltage
- 12VDC
- Mounting
- flush diaphragm, DIN rail
- Process connection
- BSP 1/2
- Fluid
- for liquids
- Material
- stainless steel
- Protection level
- IP65
- Applications
- process
- Other characteristics
- compact, OEM
- Pressure range
Max.: 40 bar
(580.15 psi)Min.: -1 bar
(-14.5 psi)- Precision
0.02 %, 0.5 %
- Long-term stability
0.25 %
- Process temperature
Max.: 100 Ā°C
(212 Ā°F)Min.: -40 Ā°C
(-40 Ā°F)
Description
- Stainless steel construction
- Anti-frequency interference design, especially suitable for use with inverters and variable frequency pumps
- Stable and highly reliable piezoresistive pressure sensor
- Connection with flush diaphragm for dense fluids
The TP488 piezoresistive transmitter has a compact design for easy installation.
It consists of an OEM sensor housed in a stainless steel casing, making it highly resistant to gaseous or liquid media.
This versatile instrument is suitable for use in applications where the process fluid has high viscosity.
Specifications
Overpressure - ā¤100 bar: 2 times full scale; ā„100 bar 1.5 times full scale
0ĀŗC coefficient - Typical: Ā±0.02% FS/ĀŗC(<1bar) / Maximum: Ā±0.05 FE/ĀŗC
Gasket - Viton
Response time - ā¤5ms
