Differential pressure gauge DPH200
dialthreadedNPT 1/4

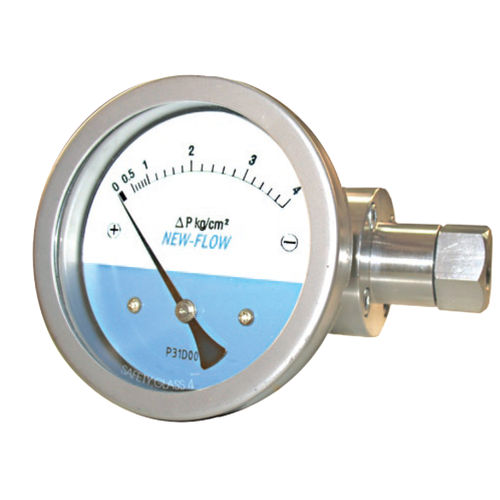

Differential pressure gauge - DPH200 - Golden Mountain Enterprise - dial / threaded / NPT 1/4
Differential pressure gauge - DPH200 - Golden Mountain Enterprise - dial / threaded / NPT 1/4
Differential pressure gauge - DPH200 - Golden Mountain Enterprise - dial / threaded / NPT 1/4 - image - 2
Add to favorites
Compare this product
Go to the Golden Mountain Enterprise website for more information

Characteristics

Pressure type
differential
Display
dial
Mounting
threaded
Process connection
NPT 1/4, NPT 1/2
Material
stainless steel
Technology
diaphragm
Protection level
IP66
Applications
process
Pressure

Max.: 100 psi

Min.: 0 psi

Precision

2 %

Dial diameter

100 mm, 150 mm
(3.9 in, 5.9 in)

Process temperature

80 °C
(176 °F)

Description

Spring and diaphragm as well as magnet couple with pointer. Differential pressure indicated on dial due to △P pressure of high side and low side be made from magnet couple with pointer. Technical Data Dial Size: ø4", ø6" available Accuracy: ±2% F.S (on rising pressure) Housing Material: 316 stainless steel Housing Protection: IP66 Pressure Element: Diaphragm- Viton; other parts ail in SS316; Driving magnet (no sealed) Process Connection: 1/2" or 1/4"NPT female Working Pressure: 200 kg/cm2 (Both of High & Low side must be pressured on line at the same time.) Working Temperature: max. 80℃
