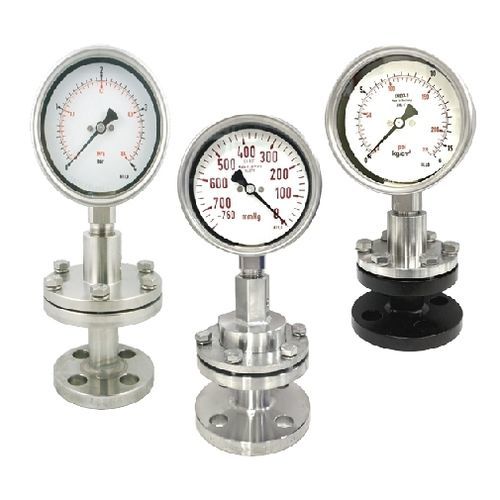

Diaphragm seal with flange connection DT116

for pressure gaugesprocess

DTI 16 diaphragm seal is designed to be used in highly viscous process media such as pulp, paper, waste water treatment, and plastic/ Chemical process industries. DTI 16 is easy to assemble with pressure gauges, pressure switches, and pressure instruments. Technical Data Instrument connection: female thread Va" to Vz" BSP or NPT Membrane size: 055, 075 for pressure gauge; and 095 for Differential type pressure gauge Process connection: Vz to 3" Flange, JIS, ANSI, DIN available Température limited: -40~+150°C cooling element or capillary line up to 350°C Pressure range limited: Maximum up to 40 kg/cm2, Teflon lining type up to 25kg/cm2 Minimum:-760 mmHg~0 (075 Membrane); 0 ~ 6 kg/cm2 (055 Membrane) Material: Upper & Lower housing-$$316 (standard), others on request Wetted parts Teflon lining available on request Membrane: SS316L (standard); Options- Hastelloy C276, SS316L with teflon lining, tantalum, and others on request.
