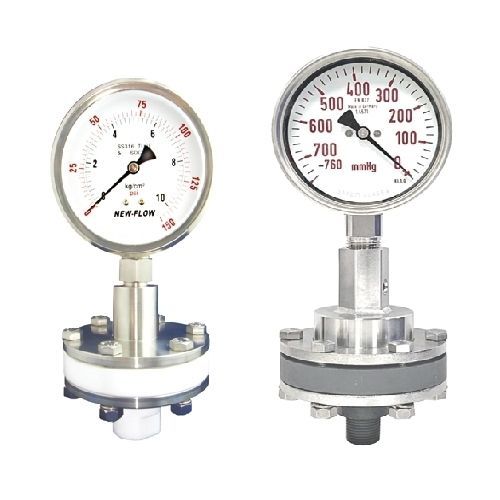

Diaphragm seal with threaded connection DT_VDT114

for pressure gaugesprocess

DT/VDT114 diaphragm seal is made with material including, special plastic to provide to against the acid fluid for application in customers device. Its easy to assemble with pressure gauges, pressure switches and pressure transducers. Technical Data Instrument connection: Female thread 1/4" to 1/2" BSP or NPT Membrane size: ø55, ø75mm Process connection: 1/4" to 1/2" BSP or NPT Measurement range: -760mmHg ~ 0~4kg/cm2(ø75Membrane); 0~6kg/cm2(ø55Membrane) Max. temperature: Up to 120°C Material: Upper housing - SS316 (standard); Low housing - P.V.C, P.P, PVDF, Teflon available Membrane material: SS316L+Teflon lining (standard); Options - Hastelloy C276, Tantalum, and others on request.
