Gas pressure and vacuum switch DPG3100T
for liquidsdigitalstainless steel

gas pressure and vacuum switch
gas pressure and vacuum switch
gas pressure and vacuum switch
gas pressure and vacuum switch
gas pressure and vacuum switch
gas pressure and vacuum switch
Add to favorites
Compare this product

Characteristics

Fluid
for gas, for liquids
Other characteristics
digital, stainless steel, with digital display
Process temperature

Min.: 0 °C (32 °F)

Max.: 50 °C (122 °F)

Pressure range

Min.: -1 bar (-14.5 psi)

Max.: 250 bar (3,625.94 psi)

Description

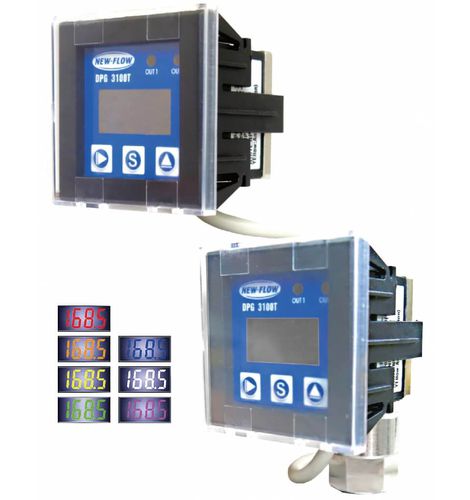

The New-Flow DPG3100T Digital Pressure Switch has two fully-programmable digital outputs available in NPN configurations. When the digital output changes State, the display can be programmed to change to Seven Colors available, and the feature is useful for “at a glance" Visual vérification. The DPG3100T can be programmed to Hystérésis Setting or Window Setting available. Technical Data Application: For Non-Corrosive Air and Fluid / Gas application Mounting Type: Mounting Brackets or Panel Mounting available Scoket Material: SS304L Accuracy: ±1% of F.S. LCD Display: (V.A.: 20.0 x 9.6mm) with 7 kinds of colors back-lighted programmable Resolution: 1/3000 (max.) Multi Pressure Units: psi, bar, kg/cm2, Kpa, Mpa, inHg, cmHg, Atm Pressure Range: Vacuum -1 bar to 260 bar Suprême Working Pressure: Up to 250 bar Température Compensated: 0~50°C Analog Output: Current Output 4~20mA Digital Output: NPN Power Supply: 10 to 30 VDC Weight: approx. 0.15kg
