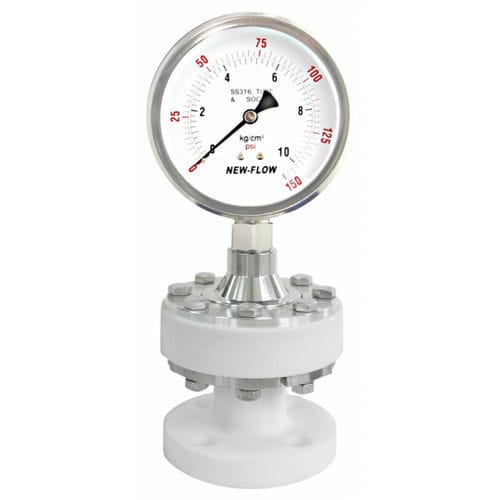

Diaphragm seal with flange connection DT_VDT118

for pressure gaugesprocess

DT118/VDT118 diaphragm seal is made with material including, special plastic to provide to against the acid fluid for application in customers device. It's easy to assemble with pressure gauges, pressure switches and pressure transducers. Technical Data Instrument connection: Female thread 1/4" to 1/2" BSP or NPT Membrane size: ø55, ø75 Process connection: 1/2" to 2" Flange type, JIS, ANSI, DIN available Measurement range: -760mmHg ~ 0~10 kg/cm2 (ø75Membrane); 0-6 kg/cm2 (055 Membrane) Max. temperature: Up to 120°C Material: Upper housing - SS316 (standard); Low housing - P.V.C, P.P, PVDF, Teflon available Membrane material: SS316L+Teflon lining (standard); Options - Hastelloy C276, Tantalum, and others on request.
